Nissan Rogue Service Manual: Side air spoiler

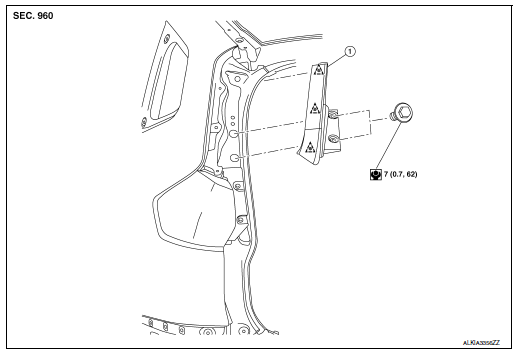

Exploded View
- Side air spoiler
Clip
Removal and Installation
REMOVAL
- Remove side air spoiler bolts (A).
1: Side air spoiler
B: Clips

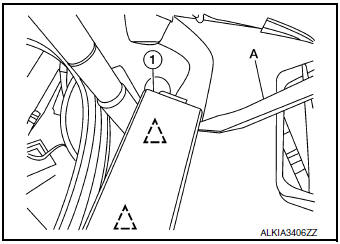

- Release clips using suitable tool (A) and remove side air spoiler
(1).
: Clips
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- When installing, visually check the side air spoiler and clips and replace them with new parts if they have been damaged.
- When installing side air spoiler, check that clips and bolts are securely placed in body panel holes.
Rear spoiler
Removal and Installation
The rear spoiler is part of the back door assembly. Refer to DLK-248, "BACK
DOOR ASSEMBLY : Removal
and Installation" (WITH INTELLIGENT KEY SYSTEM) or DLK-365, & ...
Back door outer finisher
Exploded View
Back door outer finisher
License lamp finisher
Clip
Removal and Installation
REMOVAL
Remove back door finisher. Refer to INT-38, "Removal and Installatio ...
