Nissan Rogue Service Manual: Service data and specifications (SDS)

Nissan Rogue Service Manual / Brakes / Brake System / Service data and specifications (SDS)

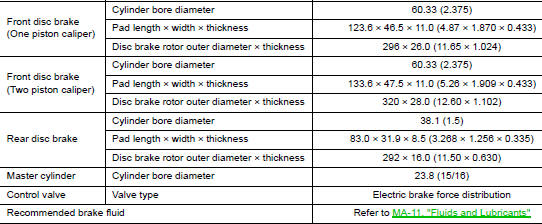

General specifications

General specifications

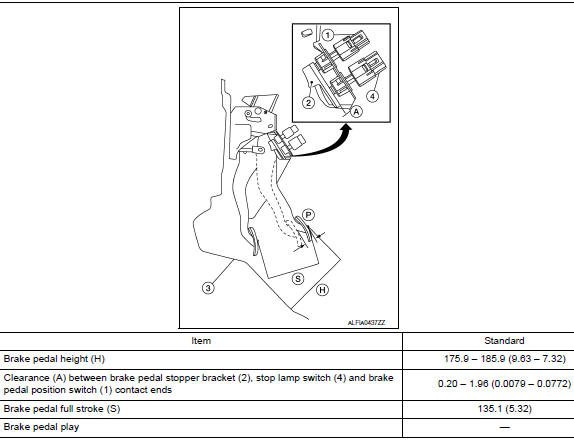

Brake pedal

Brake pedal

Brake booster

Brake booster

Front Disc Brake

Front disc brake

Rear disc brake

Rear disc brake

Rear disc brake
Exploded View Sliding pin bolt  Sliding pin bolt bushing Cap  Bleeder valve Brake caliper body Piston seal  Piston Piston boot  Sliding pin boot &nb ...
