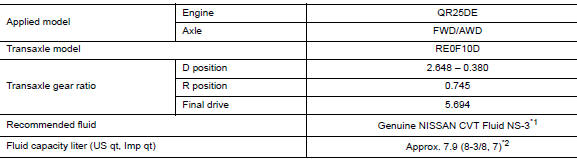

General Specification
CAUTION:
*1: Refer to MA-11, "Fluids and Lubricants".
*2: The CVT fluid capacity is the reference value.

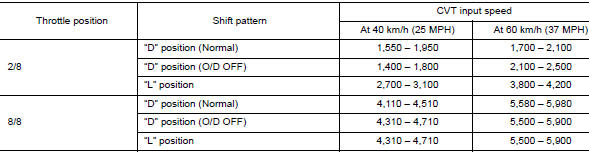

Shift Characteristics
NOTE: Lock-up is engaged at the vehicle speed of approximately 18 km/h (12 MPH) to 25 km/h (16 MPH).
Stall Speed
Torque Converter
Heater Thermostat
Removal and installation
REAR PROPELLER SHAFT
Exploded View
Center bearing mounting bracket
(upper)
Clip
Propeller shaft assembly
Center bearing mounting bracket
(lower)
: Vehicle front
: N·m (kg-m, ft-lb)
: Always replace after every
disassembly.
Removal and Installation
REMOVAL
Shif ...
Parking brake switch signal circuit
Component Function Check
1.CHECK PARKING BRAKE SWITCH OPERATION
Check that brake warning lamp in combination meter turns ON/OFF when parking
brake is actuated.
Is the inspection result normal?
YES >> Inspection End.
NO >> Proceed to diagnosis procedure. Refer to WCS-45, " ...
Component parts
METER SYSTEM
METER SYSTEM : Component Parts Location
Vehicle front
View of the fuel pump and fuel level
sensor inspection hole covers with
the rear seat removed.
View of front engine assembly
No.
Component
Function
1
Combination me ...
