Nissan Rogue Service Manual: Second row seat belt

Nissan Rogue Service Manual / Restraints / Seat Belt / Removal and installation / Second row seat belt

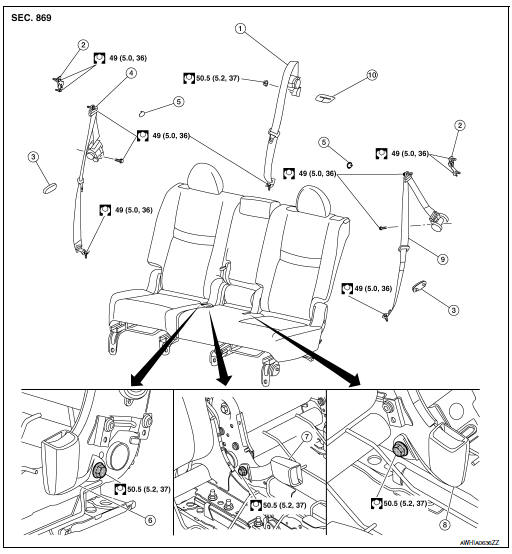

Exploded View

Exploded View

Seat belt retractor (center)
Seat belt D-ring bracket (LH/ RH)
Seat belt hook (LH/RH)
Seat belt retractor (RH)
Seat belt D-ring bolt cover (LH/RH)
Seat belt buckle (RH)
Seat belt buckle (center)
Seat belt buckle (LH)
Seat belt retractor (LH)
Seat belt center retractor outer finisher

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

SEAT BELT RETRACTOR - (LH/RH)

Remove luggage side upper finisher. Refer to INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal and Installation".
Remove second row seat. Refer to SE-39, "Removal and Installation".

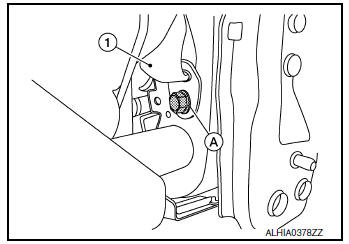

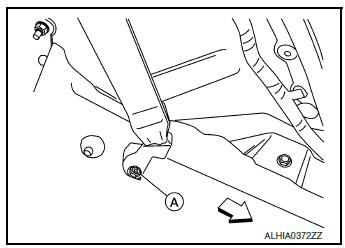

Remove lower anchor bolt (A).

Seat belt retractor

Front

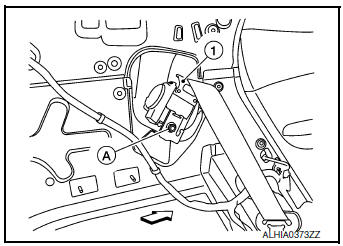

Remove seat belt retractor bolt (A) and remove seat belt retractor (1).

Seat belt retractor

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer to SB-12, "Exploded View".
Make sure the D-ring anchor operates freely.
Always perform an inspection after repair to make sure the system is functioning within specifications.
Refer to SB-5, "Inspection".

SEAT BELT RETRACTOR - (CENTER)

Removal

Remove seatback pad and seatback trim (LH). Refer to SE-65, "LH SEAT : Seatback".

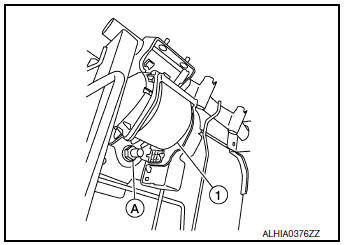

Remove seat belt retractor lower anchor nut (A), then route seat belt retactor (1) through seat cushion (LH).

Removal

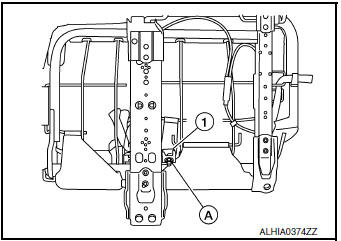

Remove seat belt retractor nut (A) and remove seat belt retactor (1) from rear seatback frame (LH).

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer to SB-12, "Exploded View".
Make sure the D-ring anchor operates freely.
Always perform an inspection after repair to make sure the system is functioning within specifications.
Refer to SB-5, "Inspection".

SEAT BELT BUCKLE

SEAT BELT BUCKLE : Removal and Installation

SEAT BELT BUCKLE - (LH)

Removal

Remove second row seat (LH). Refer to SE-39, "Removal and Installation".

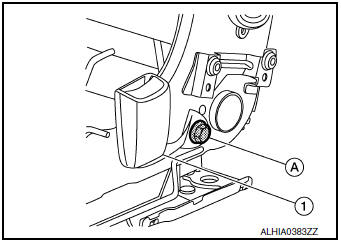

Remove seat belt buckle (LH) anchor bolt (A), then route seat belt buckle (LH) (1) through seat cushion opening and remove.

Removal

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
Always perform an inspection after repair to make sure the system is functioning within specifications.
Refer to SB-5, "Inspection".

SEAT BELT BUCKLE - (CENTER)

Removal

Remove second row seat (LH). Refer to SE-39, "Removal and Installation".

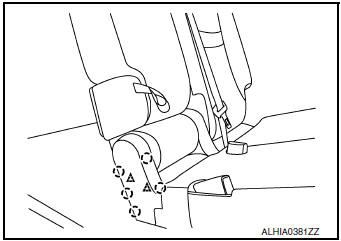

Using a suitable tool, release clips and pawls, then remove seat cushion outer finisher (RH).

Removal

Clip
Pawl

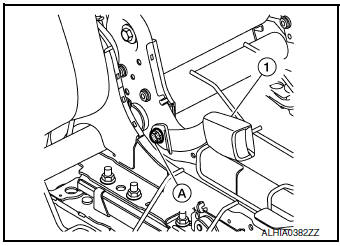

Remove second row seat (LH) (center) seat belt buckle anchor bolt (A), then route seat belt buckle (center) (1) through seat cushion opening and remove.

Removal

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
Always perform an inspection after repair to make sure the system is functioning within specifications.
Refer to SB-5, "Inspection".

SEAT BELT BUCKLE - (RH)

Removal

Remove second row seat (RH). Refer to SE-39, "Removal and Installation".

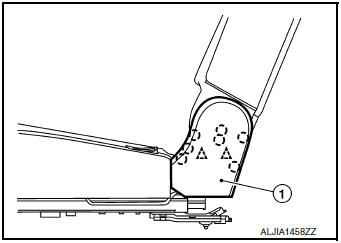

Using a suitable tool release clips and pawls and remove seat cushion outer finisher (LH) (1).

Removal

: Clip
: Pawl

Remove seat belt buckle anchor bolt (A), then route seat belt buckle (RH) (1) through seat cushion and remove.

Removal

Installation

Installation is in the reverse order of removal.

CAUTION:

Tighten the seat belt buckle anchor bolt to specification. Refer to SB-12, "Exploded View".
Always perform an inspection after repair to make sure the system is functioning within specifications.
Refer to SB-5, "Inspection".
