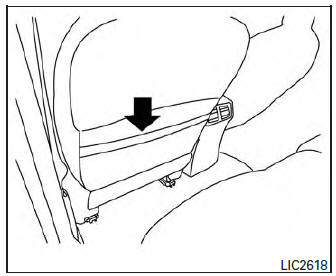

Seatback pockets
There is a pocket located on the back of the driver and passenger seats. These pockets can be used to store maps.
