Nissan Rogue Service Manual: Removal and installation

REAR WHEEL HUB

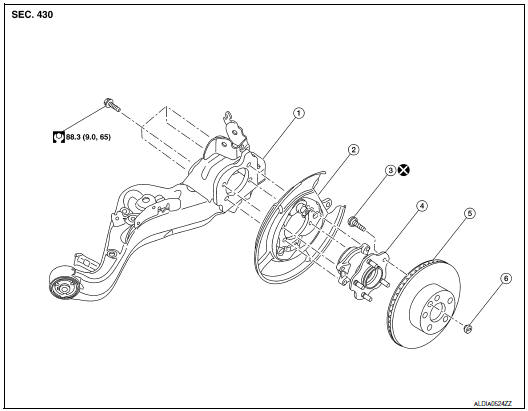

Exploded View

Exploded View

  1. Suspension arm
  2. Back plate
  3. Wheel stud
  4. Wheel hub and bearing
  5. Disc brake rotor
  6. Plug

Removal and Installation

REMOVAL

Wheel Hub and Bearing

  1. Remove the wheel and tire using power tool. Refer to WT-57, "Adjustment".
  2.  Remove the bolt and separate the rear wheel sensor from the wheel hub and bearing. Refer to BRC-133, "REAR WHEEL SENSOR : Exploded View".

CAUTION:

  1.  Remove torque member bolts using power tool, leaving the brake hose attached. Position brake caliper aside with wire. Refer to BR-42, "BRAKE CALIPER ASSEMBLY : Exploded View".

    CAUTION: Do not depress brake pedal while brake caliper is removed.

  2. Put alignment marks on the disc brake rotor and on the wheel hub and bearing. Remove the disc brake rotor. Remove disc brake rotor.

    CAUTION: Do not drop disc brake rotor.

  3. Remove the hub bolts and the wheel hub and bearing.

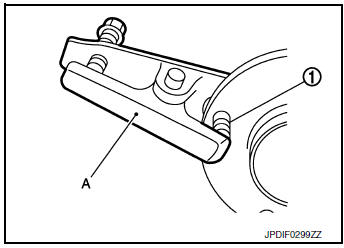

  4. If necessary, remove the wheel studs (1) from the wheel hub and bearing using a suitable tool (A).

CAUTION:

  1. Inspect the components. Refer to RAX-8, "Inspection".

Wheel Hub and Bearing

INSTALLATION

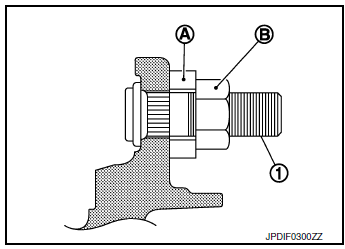

Installation is in the reverse order of removal.

CAUTION:

Wheel Hub and Bearing

Inspection

INSPECTION AFTER REMOVAL

Check wheel hub and bearing for wear, cracks, and damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

  1.  Adjust parking brake operation (stroke). Refer to PB-4, "Inspection and Adjustment".
  2.  Check wheel alignment. Refer to RSU-6, "Inspection".
  3.  Adjust neutral position of steering angle sensor. Refer to BRC-70, "Work Procedure".
Periodic maintenance
REAR WHEEL HUB AND HOUSING Inspection INSPECTION Make sure the conditions (looseness, back lash) of each component and component conditions (wear, damage) are normal. WHEEL HUB AND BEARING INSP ...

Service data and specifications (SDS)
Wheel Bearing ...
