Nissan Rogue Service Manual: Removal and installation
BCM (BODY CONTROL MODULE)
Removal and Installation
CAUTION: Before replacing the BCM, perform “READ CONFIGURATION” to save or print current vehicle specification.
Refer to BCS-120, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Procedure".
REMOVAL
- Disconnect the negative battery terminal. Refer to PG-77, "Removal and Installation".
- Remove the instrument lower panel LH. Refer to IP-22, "Removal and Installation".

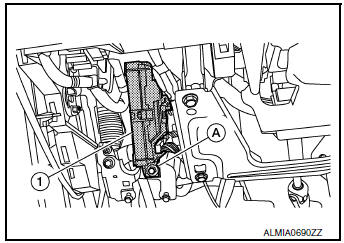

- Remove the bolt (A), then pull out the BCM (1).
- Disconnect the harness connectors from the BCM and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- When replacing BCM, perform “WRITE CONFIGURATION” Refer to BCS-121, "CONFIGURATION (BCM) : Work Procedure".
- When replacing BCM, perform the system initialization (NATS). Refer to the CONSULT immobilizer mode and follow the on-screen instructions.
- When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be re-registered. Refer to the CONSULT immobilizer mode and follow the on screen instructions.
COMBINATION SWITCH

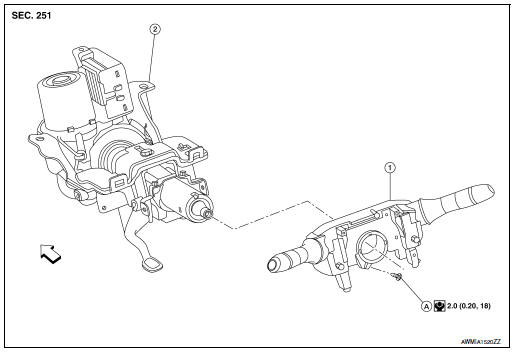

Exploded View
- Combination switch
- Steering column
- Screw
Front
Removal and Installation
REMOVAL
- Remove the steering angle sensor. Refer to BRC-139, "Removal and Installation".
- Disconnect harness connector from combination switch.

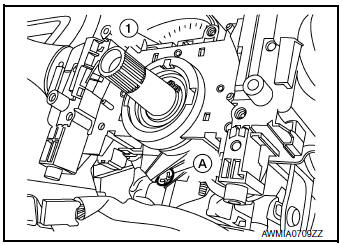

- Remove screw (A) and combination switch (1).
INSTALLATION
Installation is in the reverse order of removal
