Nissan Rogue Service Manual: Removal and installation

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Security Control System / With intelligent key system / Removal and installation

NATS ANTENNA AMP.

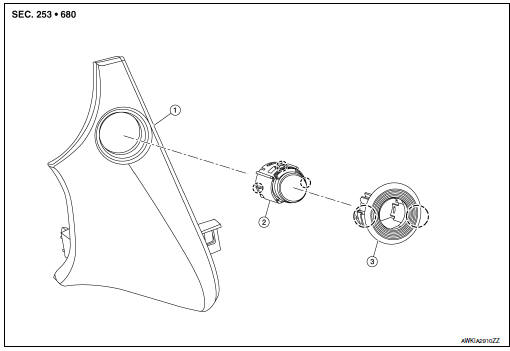

Exploded View

Exploded View

Instrument finisher B
Push button ignition switch
NATS antenna amp.

Pawl

Removal and Installation

REMOVAL

Remove the instrument finisher B. Refer to IP-16, "INSTRUMENT FINISHER B : Removal and Installation".

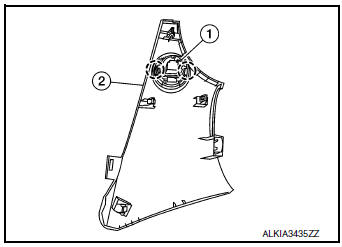

Release pawls and remove NATS antenna amp. (1) from instrument finisher B (2).

: Pawl

Removal

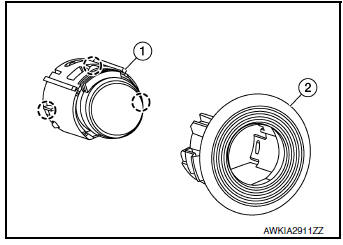

Release pawls and remove NATS antenna amp. (2) from push button ignition switch (1).
: Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.

PUSH-BUTTON IGNITION SWITCH

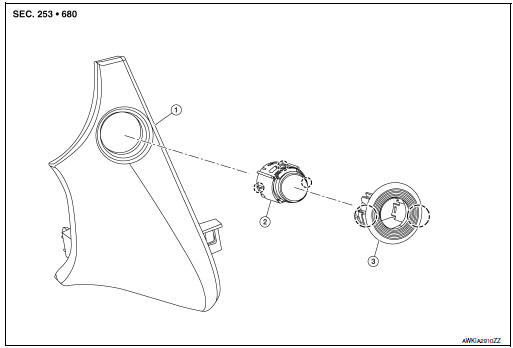

Exploded View

Exploded View

Instrument finisher B
Push button ignition switch
NATS antenna amp.

Pawl

Removal and Installation

REMOVAL

Remove the instrument finisher B. Refer to IP-16, "INSTRUMENT FINISHER B : Removal and Installation".

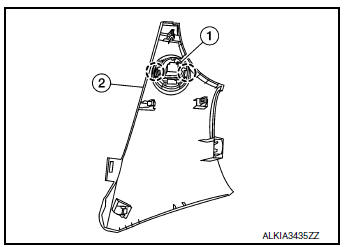

Release pawls and remove NATS antenna amp. (1) from instrument finisher B (2).
: Pawl

Removal

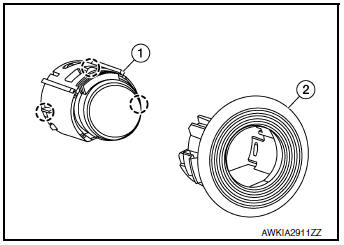

Release pawls and remove NATS antenna amp. (2) from push button ignition switch (1).
: Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.
