Nissan Rogue Owners Manual: Rear window wiper and washer switch

Nissan Rogue Owners Manual / Instruments and controls / Rear window wiper and washer switch

WARNING

In freezing temperatures the washer solution may freeze on the window and obscure your vision. Warm the rear window with the defroster before you wash the rear window.

CAUTION

Do not operate the washer continuously for more than 30 seconds.
Do not operate the washer if the reservoir is empty.
Do not fill the windshield-washer fluid reservoir with washer fluid concentrates at full strength. Some methyl alcohol based washer fluid concentrates may permanently stain the grille if spilled while filling the windshieldwasher fluid reservoir.
Pre-mix washer fluid concentrates with water to the manufacturer’s recommended levels before pouring the fluid into the windshield-washer fluid reservoir.
Do not use the windshield-washer fluid reservoir to mix the washer fluid concentrate and water.

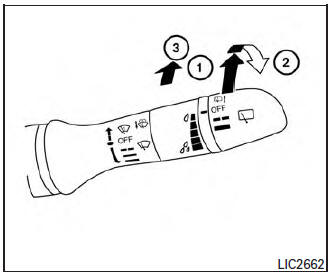

Rear window wiper and washer switch

If the rear window wiper operation is interrupted by snow, etc., the wiper may stop moving to protect its motor. If this occurs, turn the wiper switch to OFF and remove the snow, etc. on and around the wiper arms. After about 1 minute, turn the switch ON again to operate the wiper.

The rear window wiper and washer operate when the ignition switch is in the ON position. Turn the switch clockwise from the OFF position to operate the wiper.

Intermittent (INT) — intermittent operation (not adjustable)
Low (ON) — continuous low speed operation

Push the switch forward 3 to operate the washer. The wiper will also operate several times.
