Nissan Rogue Service Manual: Rear door glass

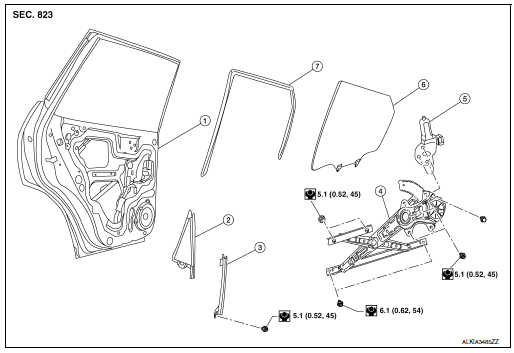

Exploded View

Exploded View

  1. Rear door panel
  2. Rear door glass corner finisher
  3. Rear door glass rear run channel
  4. Rear door glass regulator assembly
  5. Rear door glass power window motor
  6. Rear door glass
  7. Rear door glass rubber run channel

Removal and Installation

REMOVAL

  1.  Remove the rear door finisher. Refer to INT-18, "Removal and Installation".

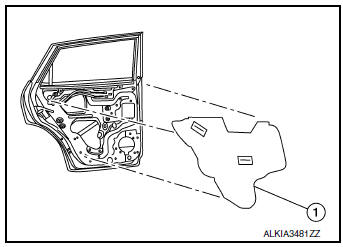

  2.  Remove the rear door vapor barrier (1).

Removal

  1. Temporarily reconnect the rear power window switch.

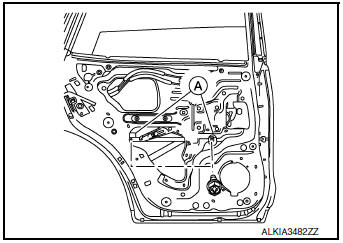

  2. Operate the rear power window switch to raise/lower the rear door glass until the rear door glass regulator to rear door glass bolts (A) can be seen and remove.

Removal

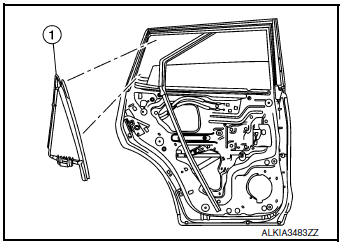

  1. Remove screws and rear door corner finisher (1).

Removal

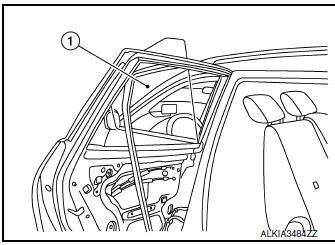

  1. Remove the rear door glass (1).

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: • Tighten the rear door regulator bolts to glass specification. Refer to GW-22, "Exploded View"

FITTING INSPECTION

Front power window motor
Removal and Installation REMOVAL  Remove front door glass regulator. Refer to GW-16, "Removal and Installation".  Remove screws (A) and front power window motor (1) from ...

Rear regulator
Exploded View Rear door panel Rear door glass corner finisher Rear door glass rear run channel Rear door regulator assembly Rear door glass power window motor Rear door glass & ...
