Nissan Rogue Service Manual: Rear bumper

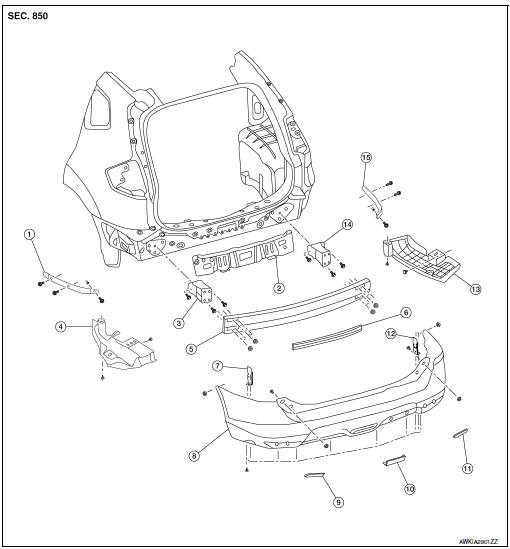

Exploded View

  1. Rear bumper fascia side bracket (LH)
  2. Rear mud protector
  3. Rear bumper reinforcement support (LH)
  4.  Rear bumper fascia undercover (LH)
  5. Rear bumper reinforcement
  6. Rear energy absorber
  7.  Rear bumper bracket (LH)
  8. Rear bumper fascia
  9. Rear bumper fascia reflector (LH)
  10.  Rear bumper finisher
  11. Rear bumper fascia reflector (RH)
  12.  Rear bumper bracket (RH)
  13.  Rear bumper fascia undercover (RH)
  14.  Rear bumper reinforcement support (RH)
  15.  Rear bumper fascia side bracket (RH)

Removal and Installation

REMOVAL

CAUTION: Bumper fascia is made of resin. Use care when handling to prevent damage. Avoid contact with oily substances.

  1.  Partially remove rear over fender molding. Refer to EXT-32, "REAR OVER FENDER : Exploded View".
  2. Partially remove rear wheel house protector. Refer to EXT-29, "REAR WHEEL HOUSE PROTECTOR : Removal and Installation".
  3. Remove clips and remove rear bumper fascia undercover (LH/RH) then remove rear mud guard (LH/RH).

    Refer to EXT-34, "Removal and Installation".

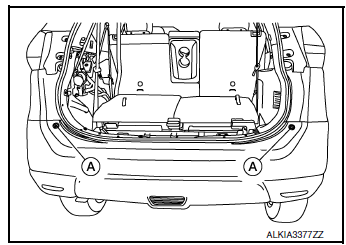

  4.  Remove rear bumper fascia upper screws (A).

Removal

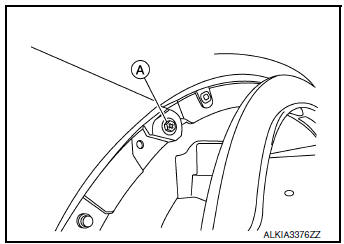

  1. Remove rear bumper fascia screw (A) (LH/RH).

Removal

  1. Disconnect harness connector from rear sonar sensors (if equipped).

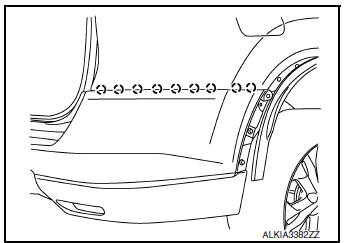

  2. Release pawls (LH/RH) using a suitable tool and remove rear bumper fascia.

    : Pawl

CAUTION: When removing rear bumper fascia, two people are required to avoid damaging.

Removal

  1. Remove energy absorber.

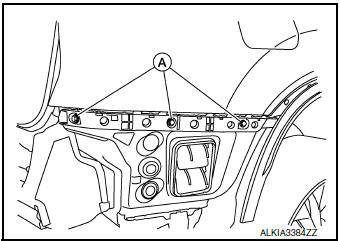

  2.  Remove bolts (A) and remove rear bumper side bracket (LH/RH) (if necessary).

Removal

  1. Remove rear bumper reinforcement nuts (LH/RH), then remove rear bumper reinforcement (if necessary).
  2.  Remove bumper stay bolts, then remove bumper stay (if necessary).
  3.  Remove rear bump reinforce support bolts and rear bumper reinforcement (LH/RH).

INSTALLATION

Installation is in the reverse order of removal.

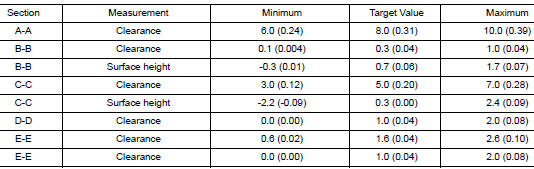

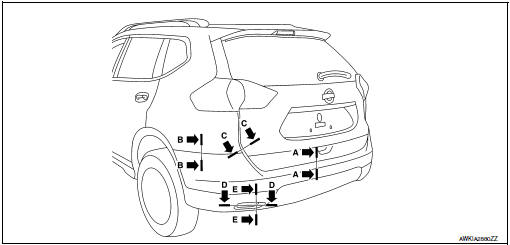

NOTE:

Installation

Installation
