Nissan Rogue Service Manual: Radiator

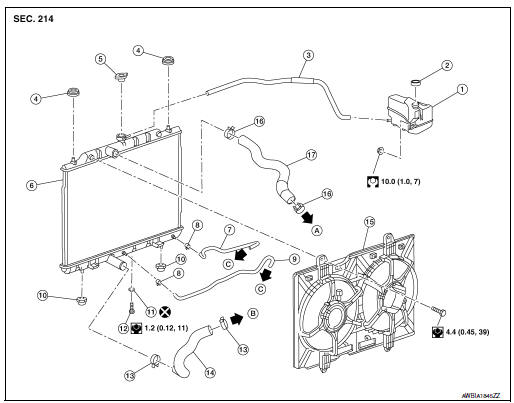

Exploded View

REMOVAL

Removal

  1. Reservoir tank
  2.  Reservoir tank cap
  3.  Reservoir tank hose
  4.  Mounting rubber (upper)
  5.  Radiator cap
  6. Radiator
  7.  CVT fluid cooler hose
  8. Clamp
  9. CVT fluid cooler hose
  10.  Mounting rubber (lower)
  11.  O-ring
  12.  Drain plug
  13.  Clamp
  14.  Radiator hose (lower)
  15.  Cooling fan assembly
  16.  Clamp
  17.  Radiator hose (upper)
  1.  To water outlet
  2. To water inlet
  3. To CVT fluid warmer

Removal and Installation

REMOVAL

WARNING: Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down and turning it all the way.

NOTE: When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.

  1.  Disconnect battery negative terminal.
  2. Disconnect battery positive terminal. Refer to PG-77, "Exploded View".
  3.  Depower SRS system. Refer to SR-2, "Service".
  4.  Drain engine coolant from radiator. Refer to CO-8, "Draining".

CAUTION:

  1.  Remove engine under cover. Refer to EXT-37, "ENGINE UNDER COVER : Removal and Installation".
  2.  Remove over fender. Refer to EXT-30, "FRONT OVER FENDER : Removal and Installation".
  3.  Remove front air spoiler. Refer to EXT-16, "Exploded View".
  4.  Remove fender protector side cover. Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
  5.  Remove radiator core support (upper). Refer to EXT-16, "Exploded View".
  6.  Remove radiator hose (upper/lower) from radiator. Refer to CO-13, "Exploded View".

    CAUTION: Do not spill engine coolant on the drive belt.

  7.  Remove clamps from radiator hose (upper/lower), (if necessary).

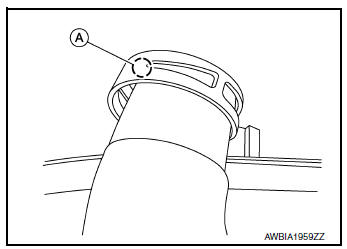

NOTE: Radiator hoses have glued on clamps.

WARNING: Wear hand protection while applying heat to remove glue.

  1.  Remove condenser. Refer to HA-37, "CONDENSER : Removal and Installation".

    CAUTION: Be careful not to damage the condenser.

  2.  Remove cooling fan assembly. Refer to CO-17, "Exploded View".

    CAUTION: Be careful not to damage the radiator.

  3.  Remove radiator.

    CAUTION: Be careful not to damage or scratch the radiator.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Do not spill coolant in engine compartment. Use a shop cloth to absorb coolant.

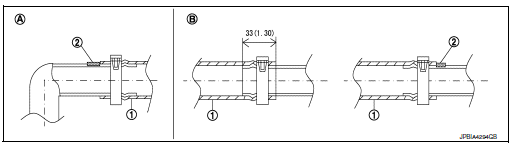

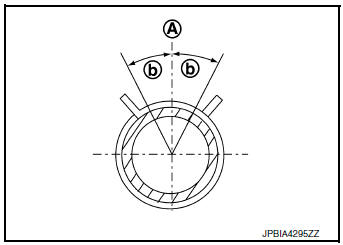

Radiator hose

NOTE:

Radiator hose

Radiator hose

Unit: mm (in)

  1.  Radiator side
  2. Engine side

Radiator hose

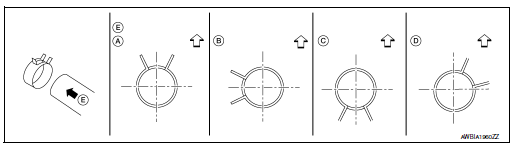

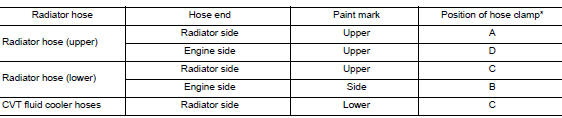

*: Refer to the illustrations for the specific position each hose clamp tab.

Radiator hose

E. View E
: Vehicle upper
: Vehicle back side

Radiator hose

Radiator hose

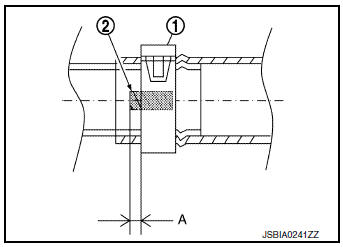

Dimension “A” : (-3) – (+3) mm [(-0.12) − (+0.12) in]

Inspection

INSPECTION AFTER INSTALLATION

Removal and installation
...
