Nissan Rogue Service Manual: Preparation

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Exterior / Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description
— (J-39570) Chassis Ear		Locating the noise
— (J-50397) NISSAN Squeak and Rattle Kit		Repairing the cause of noise
— (J-46534) Trim Tool Set		Removing trim components

Commercial Service Tool

(TechMate No.) Tool name		Description
(J-39565) Engine Ear		Locating the noise

CLIP LIST

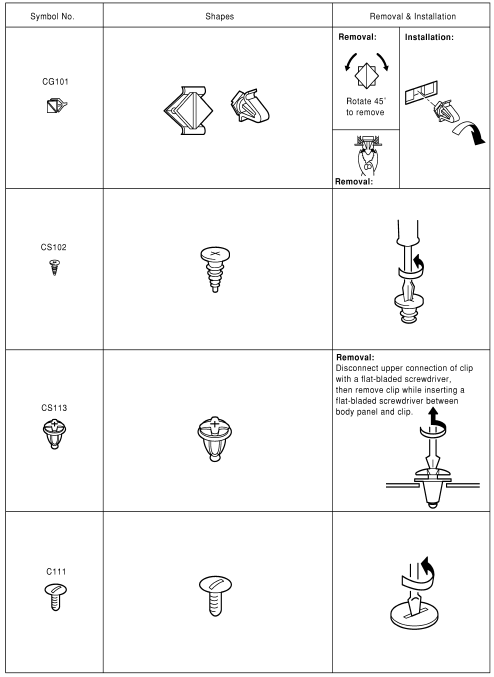

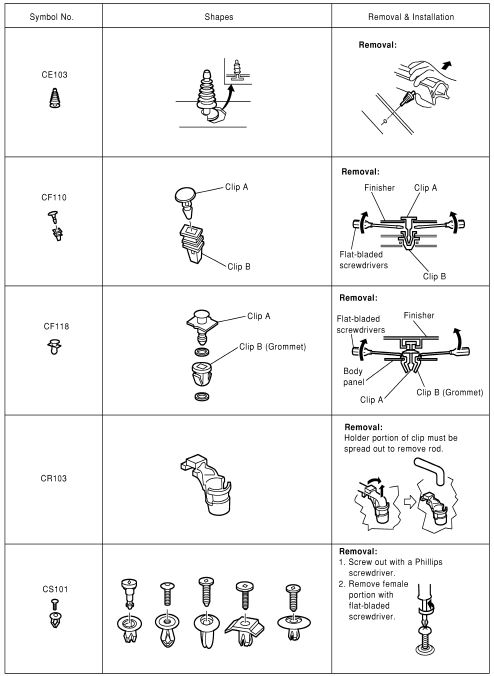

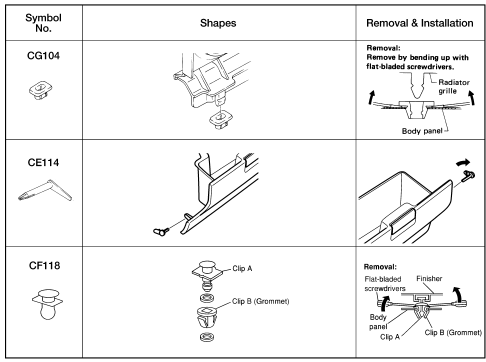

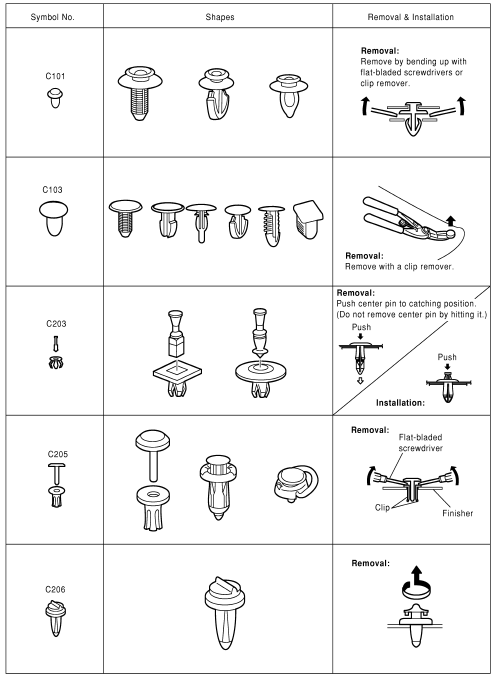

Descriptions for Clips

Replace any clips which are damaged during removal or installation.

Descriptions for Clips

Precaution

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIO ...

Symptom diagnosis

SQUEAK AND RATTLE TROUBLE DIAGNOSES Work Flow CUSTOMER INTERVIEW Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diagnostic Workshee ...
