Nissan Rogue Service Manual: Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name |
Description |
|
| — (J-39570) Chassis Ear |
|
Locating the noise |
| — (J-50397) NISSAN Squeak and Rattle Kit |
|
Repairing the cause of noise |
| — (J-46534) Trim Tool Set |
|
Removing trim components |
Commercial Service Tool
|
(TechMate No.) Tool name |
Description |
|
| (J-39565) Engine Ear |
|
Locating the noise |
| ( — ) Hook and Pick Tool |
|
Removes snap rings |

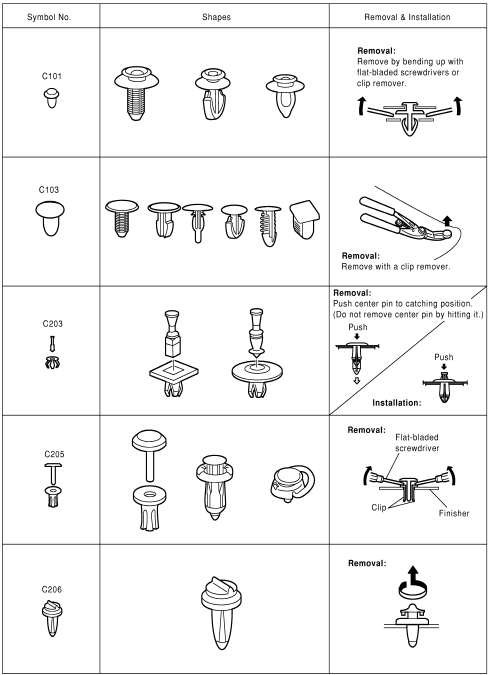

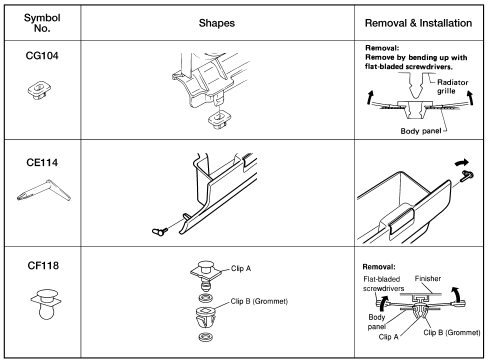

CLIP LIST
Descriptions for Clips
Replace any clips which are damaged during removal or installation.
Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONE ...
Wiring diagram
...
