Nissan Rogue Service Manual: Precaution
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT
BELT
PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”,
used along
with a front seat belt, helps to reduce the risk or severity of injury to the
driver and front passenger for certain
types of collision. Information necessary to service the system safely is
included in the SR and SB section of
this Service Manual.
WARNING:
- To avoid rendering the SRS inoperative, which could increase
the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all
maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
- Improper maintenance, including incorrect removal and
installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of
Spiral Cable and Air Bag
Module, see the SR section.
- Do not use electrical test equipment on any circuit related to
the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or
orange harnesses or harness
connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
- When working near the Airbag Diagnosis Sensor Unit or other
Airbag System sensors with the Ignition
ON or engine running, DO NOT use air or electric power tools or strike near
the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air
bag(s), possibly causing
serious injury.
- When using air or electric power tools or hammers, always
switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.

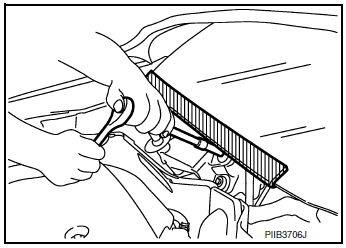

Precaution for Procedure without Cowl Top Cover
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc. to prevent damage to
windshield.
Precaution for Brake System
WARNING:
Clean any dust from the front brake and rear brake using a vacuum dust
collector. Do not blow by
compressed air.
- Brake fluid use refer to MA-11, "Fluids and Lubricants".
- Do not reuse drained brake fluid.
- Do not spill or splash brake fluid on painted surfaces. Brake
fluid may seriously damage paint. Wipe it off
immediately and wash with water if it gets on a painted surface.
- Always confirm the specified tightening torque when installing the
brake pipes.
- After pressing the brake pedal more deeply or harder than normal
driving, such as air bleeding, check each
item of brake pedal. Adjust brake pedal if it is outside the standard value.
- Do not use mineral oils such as gasoline or light oil to clean.
They may damage rubber parts and cause
improper operation.
- Always loosen the brake tube flare nut with a flare nut wrench.

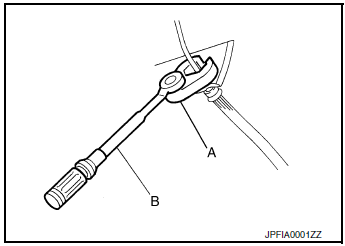

- Tighten the brake tube flare nut to the specified torque with a crowfoot
(A) and torque wrench (B).
- Always connect the battery terminal when moving the vehicle.
- Turn the ignition switch OFF and disconnect the ABS actuator and
electric unit (control unit) harness connector or the battery negative
terminal before performing the work.
- Check that no brake fluid leakage is present after replacing the
parts.
Precaution for Brake Control System
- Just after starting vehicle after ignition switch is ON, brake pedal may
vibrate or motor operating noise may
be heard from engine compartment. This is a normal condition.
- When an error is indicated by ABS or another warning lamp, collect
all necessary information from customer
(what symptoms are present under what conditions) and check for simple
causes before starting diagnostic
servicing. Besides electrical system inspection, check brake booster
operation, brake fluid level and oil
leaks.
- If tire size and type are used in an improper combination or brake
pads are not Genuine NISSAN parts, stopping
distance or steering stability may deteriorate.
- ABS might be out of order or malfunctions by putting a radio
(wiring inclusive), an antenna and a lead-in wire
near the control unit.
- If aftermarket parts (car stereo, CD player, etc.) have been
installed, check for incidents such as harness
pinches, open circuits, and improper wiring.
- VDC system may not operate normally or a VDC OFF indicator lamp or
SLIP indicator lamp may light.
- When replacing the following parts with parts other than genuine
parts or making modifications: Suspensionrelated
parts (shock absorber, spring, bushing, etc.), tires, wheels (other than
specified sizes), brake-related
parts (pad, rotor, caliper, etc.), engine-related parts (muffler, ECM, etc.)
and body reinforcement-related parts
(roll bar, tower bar, etc.).
- When driving with worn or deteriorated suspension, tires and
brake-related parts.
Precaution for Harness Repair

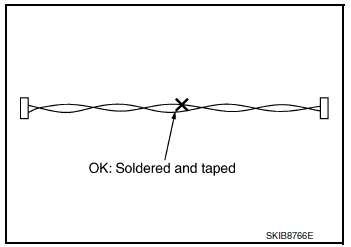

- Solder the repair part, and wrap it with tape. [Twisted wire fray
must be 110 mm (4.33 in) or less.]

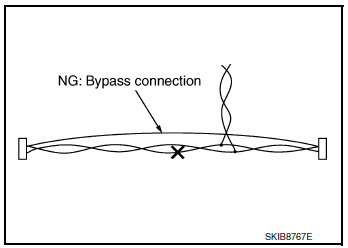

- Do not bypass the repair point with wire. (If it is bypassed, the
turnout
point cannot be separated and the twisted wire characteristics
are lost.)
Special Service Tool
The actual shape of the tool may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
KV991J0080
(J-45741)
...
