Nissan Rogue Service Manual: Precaution

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the SR and SB section of this Service Manual.

WARNING:

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Precaution for Procedure without Cowl Top Cover

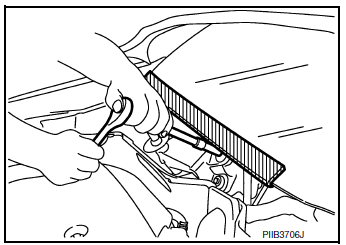

When performing the procedure after removing cowl top cover, cover the lower end of windshield with urethane, etc to prevent damage to windshiel

Precaution for Procedure without Cowl Top Cover

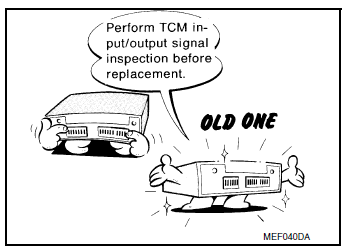

Precaution for TCM and Transaxle Assembly Replacement

CAUTION:

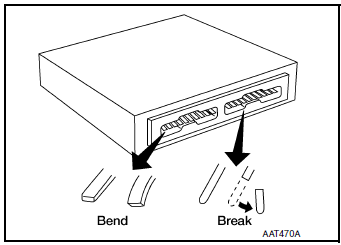

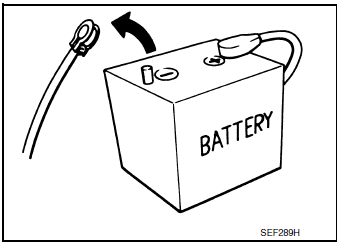

General Precautions

General Precautions

General Precautions

General Precautions

General Precautions

On Board Diagnosis (OBD) System of CVT and Engine

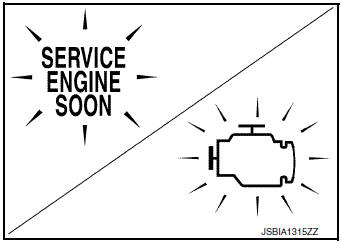

The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the driver of a malfunction causing emission deterioration.

CAUTION:

Removal and Installation Procedure for CVT Unit Connector

REMOVAL

Removal and installation procedure for cvt unit connector

INSTALLATION

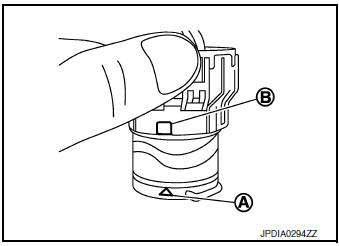

  1.  Align marking A on CVT unit harness connector terminal with marking B on bayonet ring. Insert CVT unit harness connector.

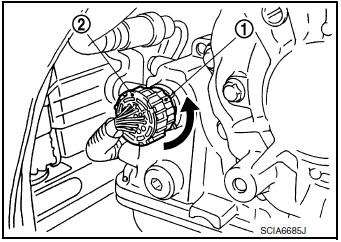

  2.  Rotate bayonet ring clockwise.

Removal and installation procedure for cvt unit connector

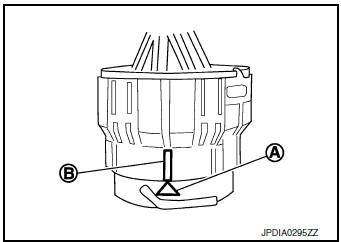

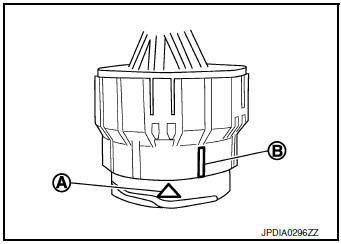

  1. Rotate bayonet ring clockwise until marking A on CVT unit harness connector terminal body is aligned with the slit B on bayonet ring as shown in the figure (correctly fitting condition).

Removal and installation procedure for cvt unit connector

CAUTION:

Removal and installation procedure for cvt unit connector
