Nissan Rogue Service Manual: Precaution

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collision. Information necessary to service the system safely is included in the SR and SB section of this Service Manual.

WARNING:

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Liquid Gasket

REMOVAL OF LIQUID GASKET SEALING

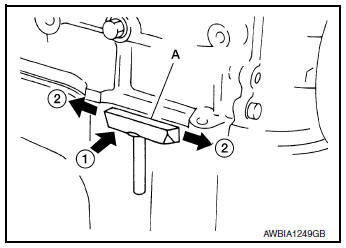

Removal of liquid gasket sealing

Tool Number : KV10111100 (J-37228)

CAUTION:

Be careful not to damage the mating surfaces.

CAUTION: Do not damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

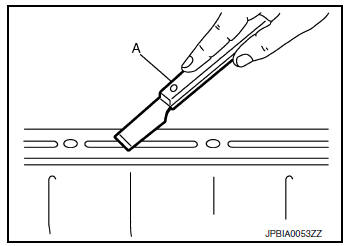

  1.  Using suitable tool (A), remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
  1.  Thoroughly clean the mating surfaces and remove adhering moisture, grease and foreign material.

Liquid gasket application procedure

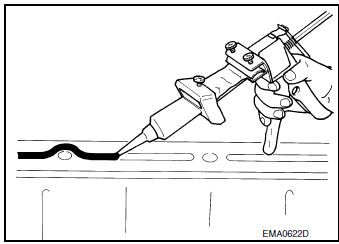

  1. Attach liquid gasket tube to the suitable tool.

    Use Genuine Silicone RTV Sealant, or equivalent. Refer to GI-22, "Recommended Chemical Products and Sealants".

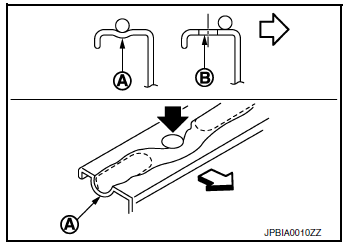

  2.  Apply liquid gasket without gaps to the specified location according to the specified dimensions.

Liquid gasket application procedure

Liquid gasket application procedure

(A) : Groove
: Inside

CAUTION: If there are specific instructions in the procedures contained in this manual concerning liquid gasket application, observe them.
