Nissan Rogue Service Manual: Parking brake shoe

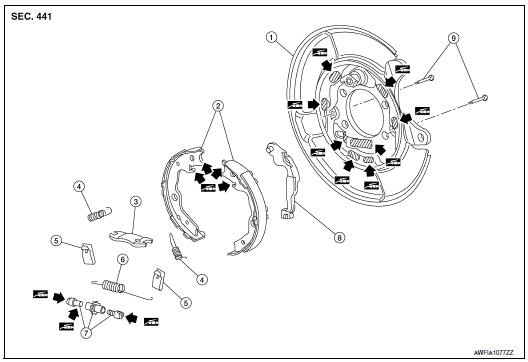

Exploded View

Exploded View

  1. Back plate
  2. Parking brake shoe
  3. Brake strut
  4.  Return spring
  5. Spring
  6. Return spring to brake strut
  7.  Adjuster
  8. Toggle lever
  9. Anti-rattle pin

: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease

Removal and Installation

REMOVAL

WARNING: Clean dust on the parking brake shoes with a vacuum dust collector to minimize the hazard of airborne particles or other materials.

  1.  Remove the rear wheel and tire using power tool. Refer to WT-60, "Removal and Installation".
  2.  Remove the brake caliper torque member bolts, leaving the brake hose attached. Position the caliper aside with wire. Refer to BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installation".

    CAUTION: Do not depress the brake pedal while the caliper assembly is removed.

  3.  Put alignment marks on the disc brake rotor and on the wheel hub and bearing and remove the disc brake rotor.

    CAUTION: Do not drop the disc brake rotor.

  4.  If disc brake rotor cannot be removed, remove as follows:
  1.  Secure the disc brake rotor with wheel nuts and remove the adjusting hole plug.

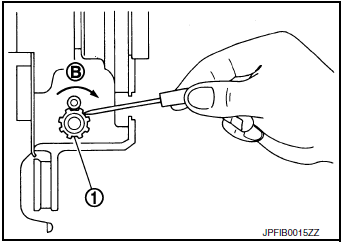

  2. Using suitable tool, rotate adjuster (1) in direction (B) to retract and loosen parking brake shoe.
  1.  Remove anti-rattle pins, springs, and return springs.

    CAUTION: Do not drop the removed parts.

  2.  Remove brake strut, adjuster, parking brake shoes and toggle lever.

CAUTION:

  1.  Remove the back plate. Refer to RAX-7, "Removal and Installation" (FWD) or RAX-16, "Removal and Installation" (AWD).
  2.  Inspect the components. Refer to PB-12, "Inspection".

Removal

INSTALLATION

Installation is in the reverse order of the removal.

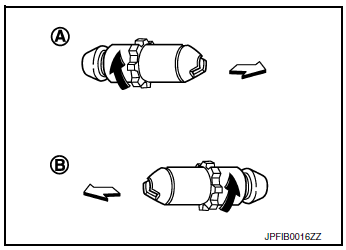

Installation

A: For RH brake
B: For LH brake
: Vehicle front
: Adjuster expands

Inspection

INSPECTION AFTER REMOVAL

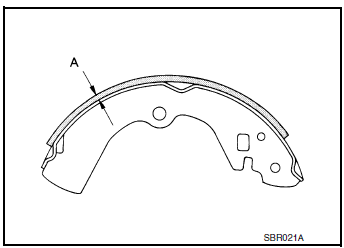

Brake Lining Thickness Inspection

Brake Lining Thickness Inspection

Limit (A) : Refer to PB-14, "Parking Drum Brake".

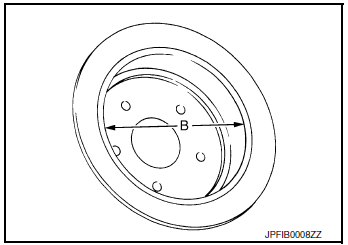

Drum Inner Diameter Inspection

Drum Inner Diameter Inspection

Limit (B) : Refer to PB-14, "Parking Drum Brake".
