Nissan Rogue Service Manual: Panoramic roof glass

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Roof / Removal and installation / Panoramic roof glass

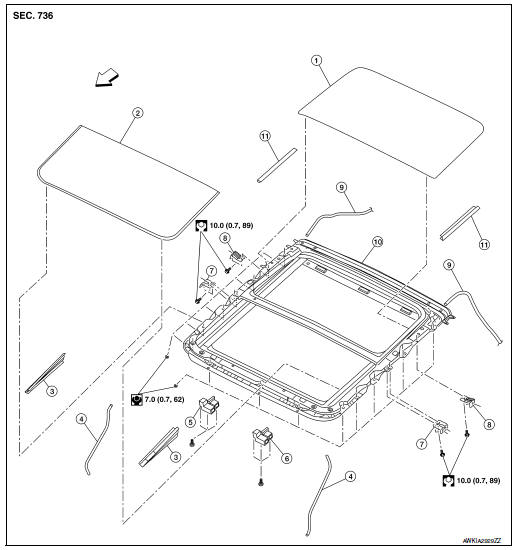

Exploded View

Exploded View

Panoramic roof glass
Glass lid
Side trim covers (LH/RH)
Front drain hose (LH/RH)
Moonroof motor assembly
Sunshade motor assembly
Moonroof front bracket (LH/RH)
Moonroof rear bracket (LH/RH)
Rear drain hose (LH/RH)
Moonroof unit assembly
Rear trim covers (LH/RH)

Front

Removal and Installation

CAUTION: Handle panoramic roof glass with care to prevent damage.

REMOVAL

Remove moonroof motor assembly. Refer to RF-53, "Removal and Installation".
Remove four screws and panoramic glass.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

First tighten left front screw, then right rear screw to prevent uneven alignment while tightening remaining screws.
After installing panoramic roof glass, check gap/height adjustments and operation. Refer to RF-55, "Inspection".
