Component Function Check

1.CHECK ORVR FUNCTION

Check whether the following symptoms are present.

Fuel odor from EVAP canister is strong.
Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.

Are any symptoms present? YES >> Proceed to EC-477, "Diagnosis Procedure".

NO >> INSPECTION END

Diagnosis Procedure

1.INSPECTION START

Check whether the following symptoms are present.

A: Fuel odor from EVAP canister is strong.

B: Cannot refuel/Fuel odor from the fuel filler opening is strong while refueling.

A or B A >> GO TO 2.

B >> GO TO 7.

2.CHECK EVAP CANISTER

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. Refer to FL-19, "Removal and Installation".
Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.

The weight should be less than 2.1 kg (4.6 lb).

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 4.

3.CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Check if water will drain from EVAP canister Does water drain from the EVAP canister? YES >> GO TO 4.

NO >> GO TO 6.

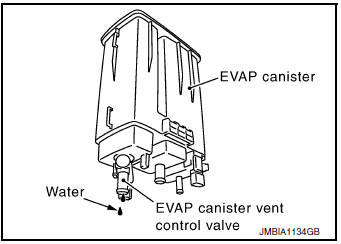

Check if EVAP canister is saturated with water

4.REPLACE EVAP CANISTER

Replace EVAP canister with a new one. Refer to FL-19, "Removal and Installation".

>> GO TO 5.

5.DETECT MALFUNCTIONING PART

Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

>> Repair or replace EVAP hose. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) or FL-16, "AWD : Removal and Installation" (with AWD models).

6.CHECK REFUELING EVAP VAPOR CUT VALVE

Check refueling EVAP vapor cut valve. Refer to EC-479, "Component Inspection".

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) or FL-16, "AWD : Removal and Installation" (with AWD models).

7.CHECK EVAP CANISTER

Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached. Refer to FL-19, "Removal and Installation".
Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor attached.

The weight should be less than 2.1 kg (4.6 lb).

Is the inspection result normal? YES >> GO TO 8.

NO >> GO TO 9.

8.CHECK IF EVAP CANISTER IS SATURATED WITH WATER

Check if water will drain from EVAP canister.

Does water drain from the EVAP canister? YES >> GO TO 6.

NO >> GO TO 11.

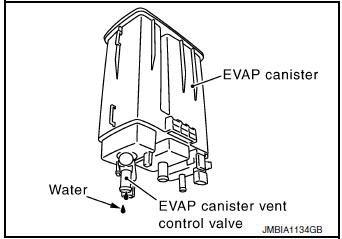

Check if evap canister is saturated with water

9.REPLACE EVAP CANISTER

Replace EVAP canister with a new one. Refer to FL-19, "Removal and Installation".

>> GO TO 10.

10.DETECT MALFUNCTIONING PART

Check the EVAP hose between EVAP canister and vehicle frame for clogging or poor connection.

>> Repair or replace EVAP hose. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) or FL-16, "AWD : Removal and Installation" (with AWD models).

11.CHECK VENT HOSES AND VENT TUBES

Check hoses and tubes between EVAP canister and refueling control valve for clogging, kinks, looseness and improper connection.

Is the inspection result normal? YES >> GO TO 12.

NO >> Repair or replace hoses and tubes.

12.CHECK FILLER NECK TUBE

Check recirculation line for clogging, dents and cracks.

Is the inspection result normal? YES >> GO TO 13.

NO >> Replace filler neck tube.

13.CHECK REFUELING EVAP VAPOR CUT VALVE

Check refueling EVAP vapor cut valve. Refer to EC-479, "Component Inspection".

Is the inspection result normal? YES >> GO TO 14.

NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).

14.CHECK FUEL FILLER TUBE

Check filler neck tube and hose connected to the fuel tank for clogging, dents and cracks.

Is the inspection result normal? YES >> GO TO 15.

NO >> Replace fuel filler tube. Refer to FL-12, "FWD : Exploded View" (with FWD models) FL-16, "AWD : Exploded View" (with AWD models).

15.CHECK ONE-WAY FUEL VALVE-1

Check one-way valve for clogging.

Is the inspection result normal? YES >> GO TO 16.

NO >> Repair or replace one-way fuel valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).

16.CHECK ONE-WAY FUEL VALVE-2

Check that fuel is drained from the tank.
Remove fuel filler tube and hose. Refer to FL-12, "FWD : Exploded View" (with FWD models) FL-16, "AWD : Exploded View" (with AWD models).
Check one-way fuel valve for operation as per the following.
When a stick is inserted, the valve should open, when removing stick it should close.
Do not drop any material into the tank.

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace fuel filler tube or replace one-way fuel valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).

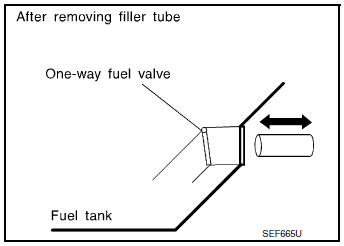

Check one-way fuel valve-2

Component Inspection

1.INSPECTION START

Will CONSULT be used? Will CONSULT be used? YES >> GO TO 2.

NO >> GO TO 3.

2.CHECK REFUELING EVAP VAPOR CUT VALVE

With CONSULT

Turn ignition switch OFF.
Remove fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).
Drain fuel from the tank as per the following:

Remove fuel feed hose located on the fuel gauge retainer.
Connect a spare fuel hose, one side to fuel gauge retainer where the hose was removed and the other side to a fuel container.
Drain fuel using “FUEL PUMP RELAY” in “ACTIVE TEST” mode with CONSULT.

Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that the air flows freely into the tank.
Check refueling EVAP vapor cut valve for being stuck to open as per the following.

Connect vacuum pump to hose end.
Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.
Turn fuel tank upside down.
Apply vacuum pressure to hose end [−13.3 kPa (−0.136 kg/cm2, −1.93 psi)] with fuel gauge retainer remaining open and check that the pressure is applicable.

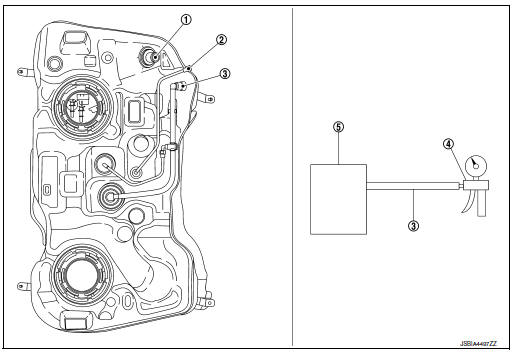

Check refueling EVAP vapor cut valve

1 Filler tube
2 Recirculation line
3 EVAP/ORVR line
4 Vacuum/pressure handy pump
5 Fuel tank

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).

3.CHECK REFUELING EVAP VAPOR CUT VALVE

Without CONSULT

Turn ignition switch OFF.
Remove fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).
Drain fuel from the tank as per the following:

Remove fuel gauge retainer.
Drain fuel from the tank using a handy pump into a fuel container.

Check refueling EVAP vapor cut valve for being stuck to close as per the following.
Blow air into the refueling EVAP vapor cut valve (from the end of EVAP/ORVR line hose), and check that the air flows freely into the tank.
Check refueling EVAP vapor cut valve for being stuck to open as per the following.

Connect vacuum pump to hose end.
Remove fuel gauge retainer with fuel gauge unit.
Always replace O-ring with new one.
Turn fuel tank upside down.
Apply vacuum pressure to hose end [−13.3 kPa (−0.136 kg/cm2, −1.93 psi)] with fuel gauge retainer remaining open and check that the pressure is applicable.

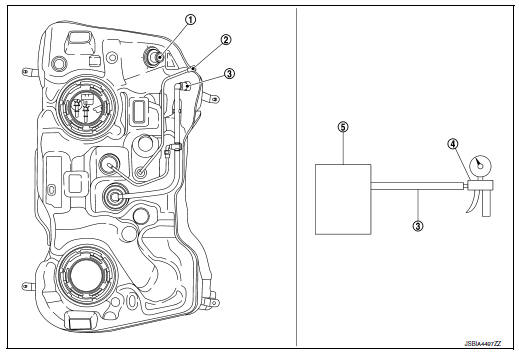

Check refueling evap vapor cut valve

1 Filler tube
2 Recirculation line
3 EVAP/ORVR line
4 Vacuum/pressure handy pump
5 Fuel tank

Is the inspection result normal? YES >> INSPECTION END

NO >> Replace refueling EVAP vapor cut valve with fuel tank. Refer to FL-12, "FWD : Removal and Installation" (with FWD models) FL-16, "AWD : Removal and Installation" (with AWD models).
