Nissan Rogue Service Manual: Map lamp assembly

Exploded View

Exploded View

  1. Map lamp assembly bracket (with moonroof)
  2. Headlining
  3. Map lamp assembly
  4.  Map lamp assembly bracket (without moonroof)
  5. Dual magnet

Metal clip
Pawl

Removal and Installation

REMOVAL

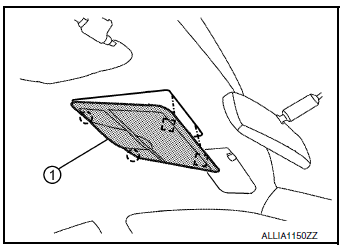

  1.  Lower front edge of map lamp assembly (1) down from the headlining by releasing the metals clips, then slide forward to clear pawls at rear.

    : Metal clip
    : Pawl

Removal

  1. Disconnect the harness connectors from map lamp assembly and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Visually check the metal clips and pawls for deformation and damage during installation. Replace if necessary.

Bulb Replacement

CAUTION: Do not attempt to separate LED bulbs from map lamp assembly or damage to the components may occur. The LED bulbs are replaced as part of the map lamp assembly. Refer to INL-55, "Removal and Installation"
