Nissan Rogue Service Manual: Luggage trim

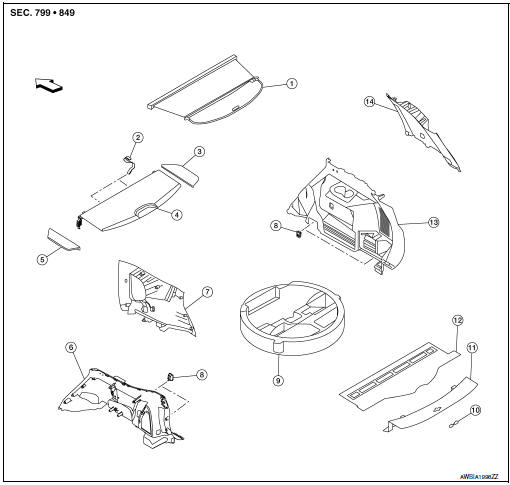

Exploded View

WITH THIRD ROW SEAT

Exploded View

  1. Tonneau cover (if equipped)
  2.  Strap (LH/RH)
  3.  Luggage floor finisher (RH)
  4.  Luggage floor center finisher
  5. Luggage floor finisher (LH)
  6.  Luggage side lower finisher (LH)
  7. Luggage side upper finisher (LH)
  8. Hooks (LH/RH)
  9. Luggage storage box
  10. Luggage rear plate finisher
  11. Luggage rear plate
  12.  Luggage floor trim
  13.  Luggage side lower finisher (RH)
  14.  Luggage side upper finisher (RH)

Front

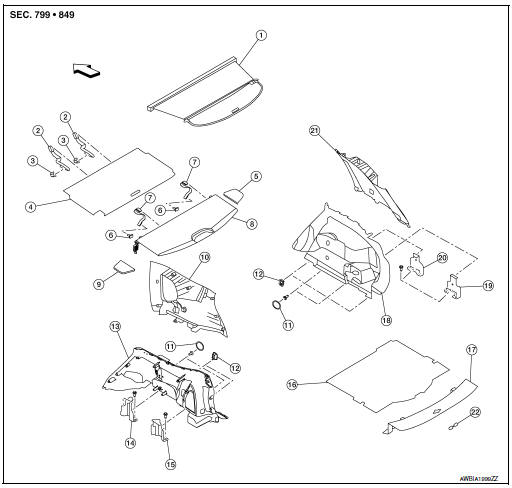

WITHOUT THIRD ROW SEAT

Exploded View

  1. Tonneau cover (if equipped)
  2. Front strap (LH/RH)
  3. Front strap hook (LH/RH)
  4.  Front luggage floor finisher
  5. Luggage floor finisher (RH)
  6. Rear strap hook (LH/RH)
  7.  Rear strap (LH/RH)
  8. Rear luggage floor finisher
  9. Luggage floor finisher (LH)
  10.  Luggage side upper finisher (LH)
  11.  Bolt covers (LH/RH)
  12.  Hooks (LH/RH)
  13.  Luggage side lower finisher (LH)
  14. Luggage side lower finisher front bracket (LH)
  15.  Luggage side lower finisher rear bracket (LH)
  16.  Luggage floor trim
  17. Luggage rear plate
  18. Luggage side lower finisher (RH)
  19.  Rear luggage side lower finisher bracket (RH)
  20.  Front luggage side lower finisher bracket (RH)
  21. Luggage side upper finisher (RH)
  22.  Luggage rear plate finisher

Front

LUGGAGE SIDE LOWER FINISHER

LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat

REMOVAL

  1.  Release straps and remove luggage floor finisher front and rear.
  2.  Remove luggage rear plate. Refer to INT-37, "LUGGAGE REAR PLATE : Removal and Installation".
  3. Partially remove back door weatherstrip.
  4.  Partially remove rear door welt (LH/RH).
  5. Fold third row seatback flat.
  6. Partially remove the rear door welt. Refer to INT-23, "BODY SIDE WELT : Removal and Installation - Rear Door Welt".
  7. Remove the luggage side lower finisher hook bolts and hooks.

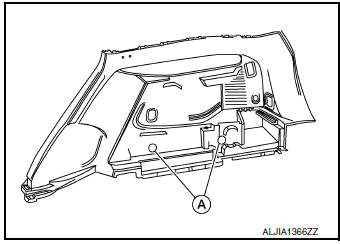

  8. Remove the luggage side lower finisher bolt covers (A) then remove bolts.

Removal

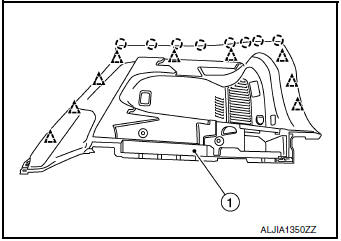

  1. Release luggage side lower finisher (1) clips and pawls.

: Clip
: Pawl

Removal

  1. Disconnect the harness connector from power socket (RH only) and luggage room lamp (RH only) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

LUGGAGE SIDE LOWER FINISHER : Removal and Installation - Without Third Row Seat

REMOVAL

  1.  Release straps and remove luggage floor finisher front and rear.
  2.  Remove luggage rear plate. Refer to INT-37, "LUGGAGE REAR PLATE : Removal and Installation".
  3.  Partially remove back door weatherstrip.
  4.  Partially remove rear door welt.
  5.  Remove the luggage side lower finisher hook bolts and hooks.

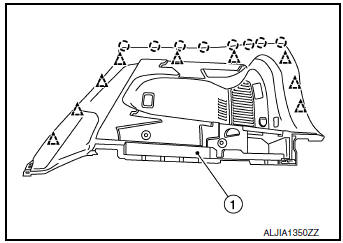

  6. Release luggage side lower finisher (1) clips and pawls.

: Clip
: Pawl

Removal

  1. Disconnect the harness connector from power socket (RH only) and luggage room lamp (RH only) and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

LUGGAGE SIDE UPPER FINISHER

LUGGAGE SIDE UPPER FINISHER : Removal and Installation

REMOVAL

  1.  Remove luggage side lower finisher. Refer to INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat".

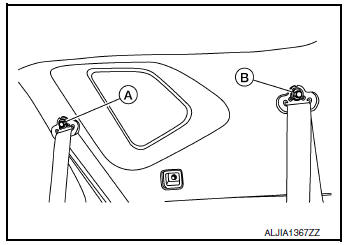

  2.  Remove rear and third row seatbelt d-ring anchor bolt covers, then remove rear and third row seatbelt d-ring anchor bolts (A and B).

Removal

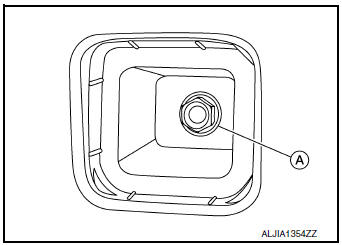

  1. Remove luggage side upper finisher bolt (A).

Removal

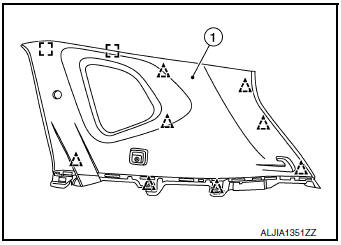

  1. Release clips, then remove luggage side upper finisher (1).

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

LUGGAGE REAR PLATE

LUGGAGE REAR PLATE : Removal and Installation

REMOVAL

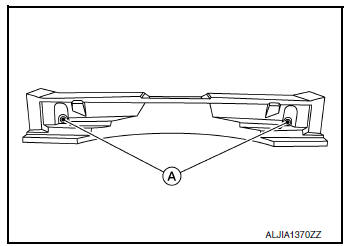

  1.  Release the luggage rear plate front clips (A) using a suitable tool.

Removal

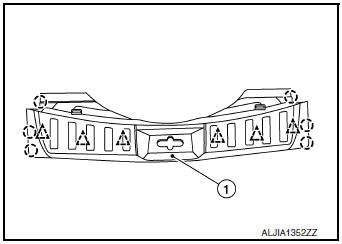

  1. Release clips and pawls using a suitable tool and remove luggage rear plate (1).

: Clip
: Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
