Nissan Rogue Service Manual: Luggage room lamp
Removal and Installation
REMOVAL

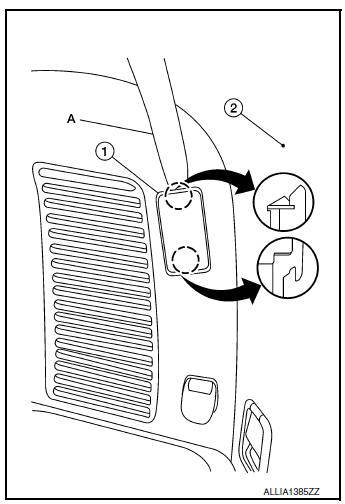

- Insert a suitable tool (A) into the gap between the luggage lower
finisher (RH) (2) and the top of luggage room lamp (1) to release
the pawl.
: Pawl
- Disconnect the harness connector from the luggage room lamp and remove.
INSTALLATION
Installation is in the reverse order of removal.
Bulb Replacement
WARNING:
Do not touch the glass surface of a bulb while it is lit or right after being
turned OFF to prevent burns.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease
and other oily substances away from
bulb surface.
- Do not leave bulb out of lamp reflector for a long time because
dust, moisture, smoke, etc. may
affect the performance of lamp.
- Remove luggage room lamp. Refer to INL-61, "Removal and Installation".

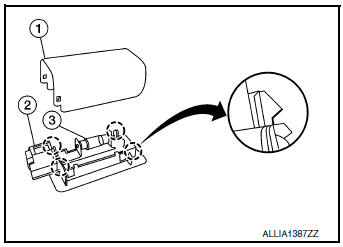

- Release pawls using a suitable tool and remove luggage room
lamp cover (1).
: Pawl
- Push the tab to release one bulb end, then grasp the luggage
room lamp bulb (3) and pull out the second end to remove.
- Install luggage room lamp bulb (3) to luggage room lamp (2).
- Install luggage room lamp cover (1).
- Install luggage room lamp. Refer to Refer to INL-61, "Removal and
Installation".
Removal and Installation
The personal lamp is serviced as part of headlining. Refer to INT-30,
"Removal and Installation".
Bulb or Lens Replacement
WARNING:
Do not touch the glass surf ...
Removal and Installation
REMOVAL
Remove the instrument finisher (A). Refer to IP-14, "Exploded
View".
Remove the screws (A) and the meter control switch (1).
INSTA ...
