Nissan Rogue Owners Manual: Luggage hooks

Nissan Rogue Owners Manual / Instruments and controls / Storage / Luggage hooks

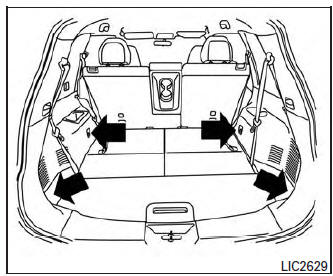

Luggage hooks

When securing items using luggage hooks located on the back of the seat or side finisher do not apply a load over more than 6.5 lbs (29 N) to a single hook.

The luggage hooks that are located on the floor should have loads less than 110 lbs (490 N) to a single hook.

The luggage hooks can be used to secure cargo with ropes or other types of straps.

Luggage hooks

WARNING

Properly secure all cargo with ropes or straps to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks. In a sudden stop or collision, unsecured cargo could cause personal injury.
Use suitable ropes and hooks to secure cargo.
Never allow anyone to ride in the luggage area. It is extremely dangerous to ride in a cargo area inside of a vehicle.
In a collision, people riding in these areas are more likely to be seriously injured or killed.
Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts.
The child restraint top tether strap may be damaged by contact with items in the cargo area. Secure any items in the cargo area. Your child could be seriously injured or killed in a collision if the top tether strap is damaged.
Be sure everyone in your vehicle is in a seat and using a seat belt properly.

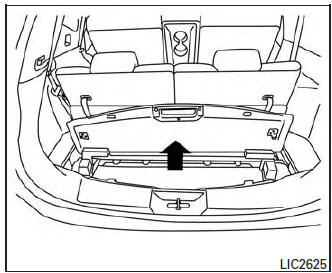

Cargo area storage bin (if so equipped)

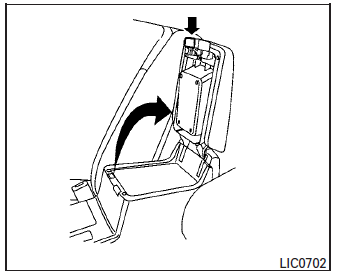

Console box

Console box Upper half Pull up on the driver’s side latch to open the upper half of the console box. The upper half of the console box may be used for storage of cellular phones. An access ...

Roof rack (if so equipped)

Roof rack (if so equipped) Genuine NISSAN accessory cross bars are available through your NISSAN dealer. Contact an NISSAN dealer for crossbar or other equipment information. Always distrib ...
