Nissan Rogue Owners Manual: Instrument panel

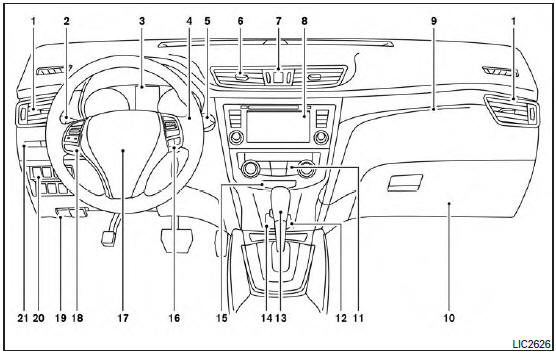

Instrument panel

  1. Vent
  2.  Headlight/fog light (if so equipped)/turn signal switch
  3.  Meters, gauges, warning/indicator lights and Vehicle Information Display
  4.  Windshield wiper/washer switch and rear window wiper/washer switch  /Ignition switch (if so equipped)
  5.  Push-button ignition switch (if so equipped)
  6.  Vent
  7.  Hazard warning flasher switch
  8.  Radio /Navigation system* (if so equipped)
  9.  Front passenger supplemental air bag
  10.  Glove box
  11.  Heater and air conditioning controls
  12.  Power outlet
  13.  Shift lever
  14.  Auxiliary jack /USB port
  15.  Front passenger air bag status light
  16.  Cruise control main/set switches (/Bluetooth Hands-Free Phone System (if so equipped)
  17.  Driver supplemental air bag/Horn (, )
  18.  Control panel and Vehicle Information Display switches
  19.  Hood release /Fuel door release
  20. Vehicle Dynamic Control (VDC) OFF switch  Sport mode switch  ECO mode switch (if so equipped)  Power liftgate switch (if so equipped) (P.3-28) Power liftgate main switch (if so equipped)  Warning systems switch (if so equipped)  All-Wheel Drive (AWD) lock switch (if so equipped)  Hill descent control switch (if so equipped)
  21.  Instrument brightness control /Twin trip odometer reset switch

*: Refer to the separate Navigation System Owner’s Manual (if so equipped).

Refer to the page number indicated in parentheses for operating details.

Passenger compartment
Glove box  Map lights  Console box  Power panoramic moonroof (if so equipped)  Luggage hooks  Center armrest (2nd row)  Seats  Cup holders ...

Engine compartment check locations
QR25DE engine  Engine coolant reservoir  Engine oil filler cap  Brake fluid reservoir Battery  Air cleaner  Fuse/Fusible link box  Radiator cap ...
