Nissan Rogue Service Manual: Instrument lower panel LH

Removal and Installation

REMOVAL

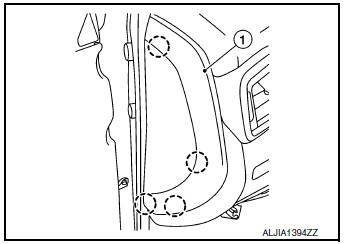

  1.  Release instrument side finisher (LH) (1) pawls using a suitable tool and remove.

    : Pawl

Removal

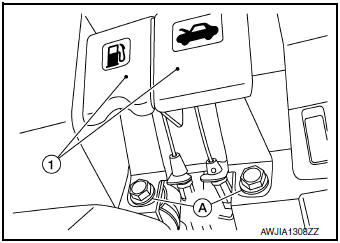

  1. Remove bolts (A) and fuel filler lid/hood lock release handle (1) from instrument lower panel LH.

Removal

  1. Remove data link cover from the instrument lower panel LH.
  2.  Release the clip using a suitable tool and remove accessory connector (1) from insturment lower panel LH.

    : Clip

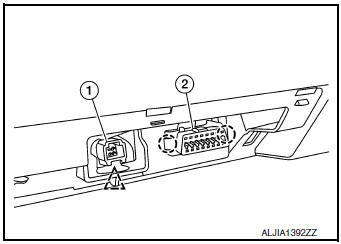

  3.  Release the pawls using a suitable tool and remove data link connector (2) from instrument lower panel LH.

    : Pawl

Removal

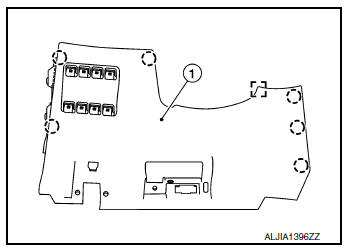

  1. Release the clips and pawls using a suitable tool, disconnect the harness connector and remove instrument lower panel LH (1).

: Pawl
: Metal clip

Removal

INSTALLATION

Installation is in the reverse order of removal.
