Nissan Rogue Service Manual: Inside mirror

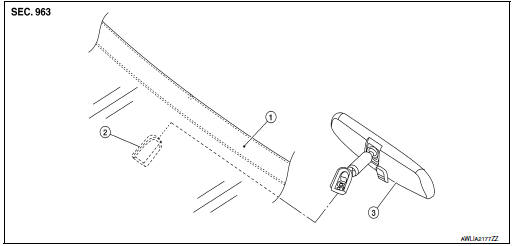

Exploded View
MANUAL ANTI-DAZZLING
- Windshield glass
- Mirror base
- Inside mirror
AUTO ANTI-DAZZLING
- Windshield glass
- Mirror base
- Inside mirror
- Inside mirror finisher
- Harness connector
- Bolt
Removal and Installation
MANUAL ANTI-DAZZLING
Removal

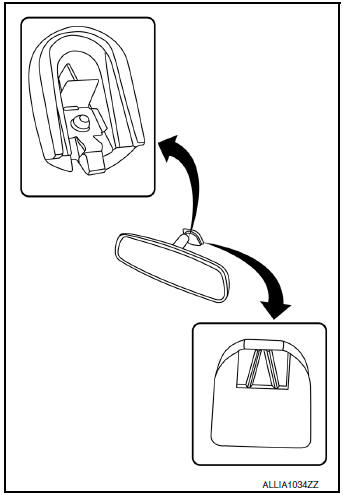

- Hold inside mirror at the base and push upward, while using a suitable tool to release the pawl and remove.
CAUTION: Use care when removing inside mirror to avoid damage to mirror, mirror base or windshield glass.
Installation
Installation is in the reverse order of removal.
CAUTION: Apply Genuine Mirror Adhesive or equivalent to bonding surface of mirror base if loose or removed.
Refer to GI-22, "Recommended Chemical Products and Sealants".
AUTO ANTI-DAZZLING
Removal
- Remove inside mirror finisher.
- Disconnect the harness connector from the inside mirror.
- Loosen bolt and slide inside mirror upward to remove.
Installation
Installation is in the reverse order of removal.
- Calibrate compass (if equipped).
CAUTION: Apply Genuine Mirror Adhesive or equivalent to bonding surface of mirror base if loose or removed.
Refer to GI-22, "Recommended Chemical Products and Sealants".
NOTE: Calibrate the compass by driving the vehicle in a complete circle three times.
Door mirror
Exploded View
Door mirror
Door mirror corner finisher
Door mirror rear finisher
Side turn signal lamp
Side camera (if equipped)
Door mirror glass
Pawl
