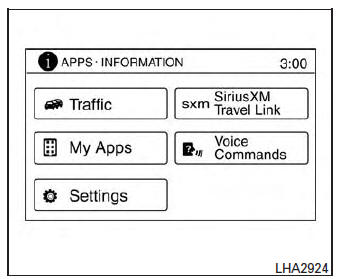

Nissan Rogue Owners Manual: How to use the [ ] button

For additional information, refer to the separate Navigation System Owner’s Manual regarding the “SiriusXM® Travel Link”, and “Traffic” features.

For additional information, refer to “Nissan- ConnectSM with Mobile Apps” in this section regarding “My Apps” key.

For additional information, refer to “NISSAN Voice Recognition System” in this section regarding the “Voice Commands” key.

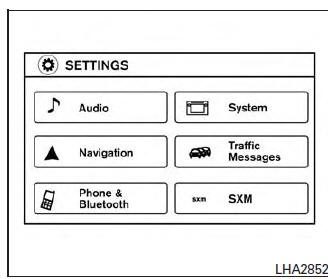

To select and/or adjust several functions, features and modes that are available for your vehicle:

1.  Press the [ ] button.
2.  Touch the “Settings” key.
3.  Touch the desired item.

Menu item			Result
Audio			For additional information, refer to “Audio system” in this section.
Navigation			For additional information, refer to the separate Navigation System Owner’s Manual.
Phone & Bluetooth			For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section.
System			Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.
	Display		Touch this key to adjust the appearance of the displa
		Brightness	Adjusts the brightness of the display.
		Display Mode	Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for the respective times of day while “Auto” controls the display automatically
		Scroll Direction	Adjusts the direction of the menu scroll. Choose to either move up or dow
	Clock		Touch this key to adjust the time.
		Time Format	The clock can be set to 12 hours or 24 hours.
		Date Format	Select from five possible formats of displaying the day, month, and year.
		Clock Mode	Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows you to set the clock using the “Set Clock Manually” key.
		Set Clock Manually	Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down. “Clock Mode” must be set to manual for this option to be available.
		Daylight Savings Time	Adjusts the daylight savings time on or off.
		Time Zone	Choose the applicable time zone from the list
	Language		Touch this key to change the language on the display.
	Camera		Touch this key to change the camera settings.
		Display Mode	Touch this key to select the touch-screen display mode (day, night, or automatic).
		Brightness	Adjust touch-screen brightness
		Contrast	Adjust touch-screen contrast.
		Color	Adjust touch-screen color.
	Temperature Unit		Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius).
	Touchscreen click		Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on the screen is touched
	System Beeps		Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up message appears on the screen or a button on the unit (such as the button) is pressed and held for 2 seconds.
	Return to Factory Settings/ Clear Memory		Touch this key to return all settings to default and to clear the memory.
	Software Licenses		Touch this key to display software licensing information.
Traffic messages			Touch this key to display traffic settings. For additional information, refer to the separate Navigation System Owner’s Manual.
SXM			Touch this key to start SiriusXM® radio. For additional information, refer to “Audio system” regarding SXM setup in this section.

button

To change the display brightness, press the button. Pressing the button again will change the display to the day or the night display.

If no operation is performed within 5 seconds, the display will return to the previous display.

Press and hold the button for more than 2 seconds to turn the display off. Press the button again to turn the display on.

How to use the POWER button/VOLUME control knob

Press the POWER button to turn audio function on and off. Turn the VOLUME control knob to adjust audio volume.

How to use the CAMERA button

For additional information, refer to “REARVIEW MONITOR”regarding the CAMERA button in this section.
