Description
OUTLINE
In order to set all SRTs, the self-diagnoses as in the “SRT ITEM” table must have been performed at least once. Each diagnosis may require actual driving for a long period of time under various conditions.

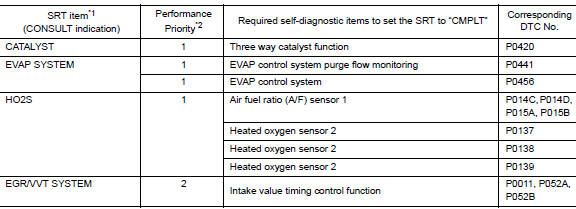

SRT ITEM
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
*1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.
*2: If completion of several SRTs is required, perform driving patterns (DTC
confirmation procedure), one by
one based on the priority for models with CONSULT.
SRT SERVICE PROCEDURE

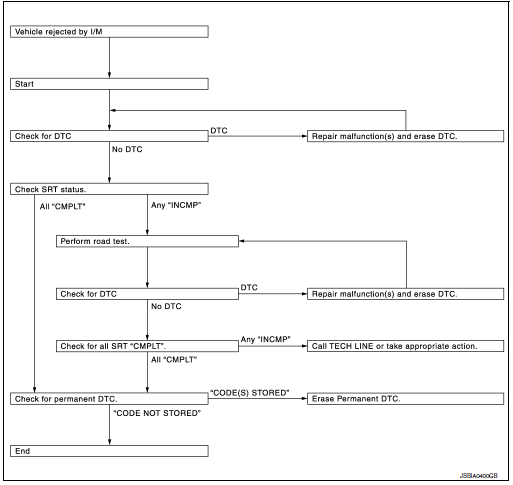

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review the flowchart diagnostic sequence, referring to the following flowchart.

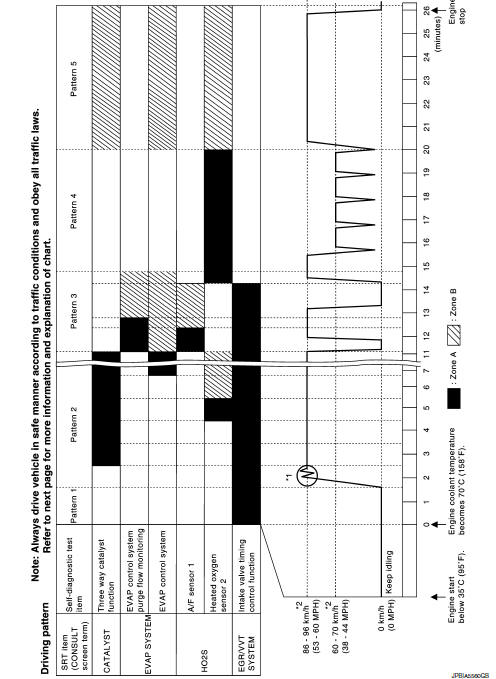

SRT Set Driving Pattern
CAUTION: Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.
*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH),
then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal
until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.
*: Normal conditions
NOTE: Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions, diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86°F)]
Work Procedure
1.CHECK DTC
Check DTC.
Is any DTC detected? YES >> Repair malfunction(s) and erase DTC. Refer to EC-93, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-64, "On Board Diagnosis Function".
With GST
Select Service $01 with GST.
Is SRT code(s) set? YES >> GO TO 11.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
Is any DTC detected? YES >> Repair malfunction(s) and erase DTC. Refer to EC-93, "DTC Index".
NO >> GO TO 10.
4.PERFORM ROAD TEST
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
NOTE: ECM terminal voltage is follows;
>> GO TO 6.
6.PATTERN 2
NOTE:
In this case, the time required for diagnosis may be extended.
>> GO TO 7.

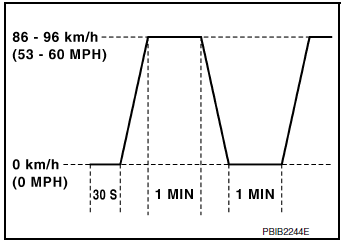

7.PATTERN 3
>> GO TO 8.

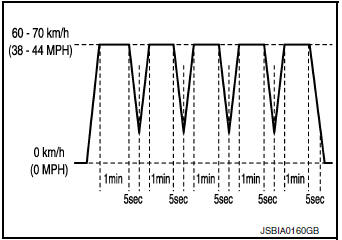

8.PATTERN 4
>> GO TO 9.
9.PATTERN 5
>> GO TO 10.
10.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-64, "On Board Diagnosis Function".
With GST
Select Service $01 with GST.
Is SRT(s) set? YES >> GO TO 11.
NO >> Call TECH LINE or take appropriate action.
11.CHECK PERMANENT DTC
NOTE: Permanent DTC cannot be checked with a tool other than CONSULT or GST. With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
With GST
Select Service $0A with GST.
Is permanent DTC(s) detected? YES >> Proceed to EC-151, "Description".
NO >> END
Component parts
Component Parts Location
Instrument lower panel LH
No.
Component
Function
1
Combination meter
The combination meter transmittes the following signal via CAN
communications
to the TCM.
SPORT mode switch signal
...
Preparation
Special Service Tools
The actual shapes of TechMate tools may differ from those of special service
tools illustrated here.
Tool number
(TechMate No.)
Tool name
Description
KV38100200
(J-26233)
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.
...
Unit removal and installation
TRANSFER ASSEMBLY
Exploded View
1 Transfer assembly
: N·m (kg-m, ft-lb)
*: Apply anti-corrosion oil.
Removal and Installation
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings
to prevent fluid from spilling.
REMOVAL
Remove front drive shaf ...
