Nissan Rogue Service Manual: Front seat belt

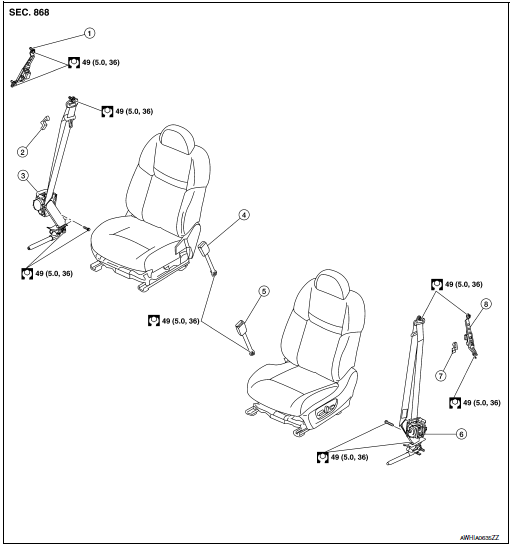

Exploded View

Exploded View

  1. Seat belt height adjuster (RH)
  2. Seat belt height adjuster bolt cover (RH)
  3. Seat belt retractor (RH)
  4. Seat belt buckle (RH)
  5. Seat belt buckle (LH)
  6. Seat belt retractor (LH)
  7. Seat belt height adjuster bolt cover (LH)
  8. Seat belt height adjuster (LH)

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

REMOVAL

WARNING:

  1.  Remove front seat. Refer to SE-32, "DRIVER SIDE : Removal and Installation" (Driver side) or SE-35, "PASSENGER SIDE : Removal and Installation" (Passenger side).
  2.  Remove the center pillar lower finisher. Refer to INT-22, "CENTER PILLAR LOWER FINISHER : Removal and Installation".

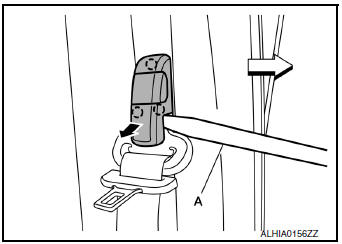

  3.  Release pawls, using a suitable tool (A) and remove the shoulder anchor cover.

Seat belt retractor : removal and installation

: Pawl
: Front

  1. Remove the D-ring anchor bolt.

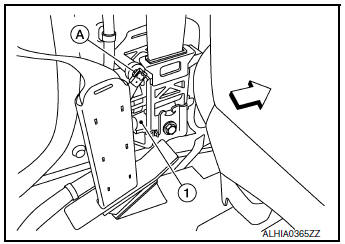

  2. Disconnect the harness connector (A) from the seat belt pre-tensioner (1).

Seat belt retractor : removal and installation

: Front

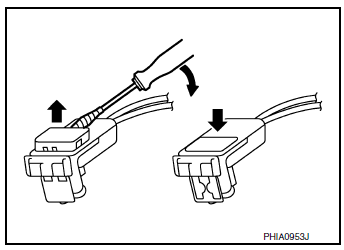

CAUTION:

Seat belt retractor : removal and installation

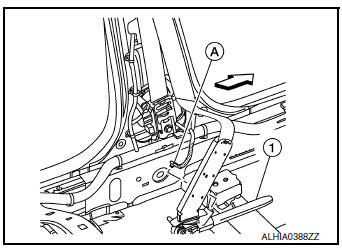

  1. Disconnect the harness connector (A) from the lap belt pre-tensioner (1).

Seat belt retractor : removal and installation

: Front

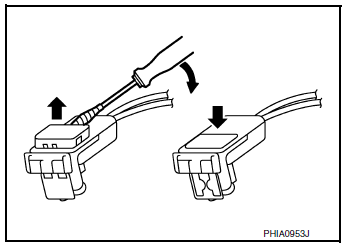

CAUTION:

Seat belt retractor : removal and installation

  1. Remove seat belt retractor bolt and lap belt pre-tensioner bolt and remove seat belt retractor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

SEAT BELT HEIGHT ADJUSTER

SEAT BELT HEIGHT ADJUSTER : Removal and Installation

REMOVAL

  1. Remove center pillar upper finisher. Refer to INT-21, "CENTER PILLAR UPPER FINISHER : Removal and Installation".

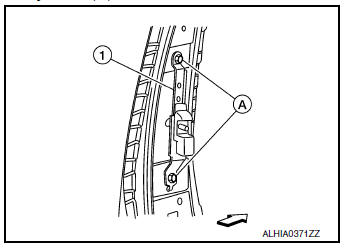

  2.  Remove the seat belt height adjuster bolts (A) and seat belt height adjuster (1).

Seat belt height adjuster : removal and installation

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

FRONT SEAT BELT BUCKLE

FRONT SEAT BELT BUCKLE : Removal and Installation

REMOVAL

  1.  Remove front seat. Refer to SE-32, "DRIVER SIDE : Removal and Installation" (Driver side) or SE-35, "PASSENGER SIDE : Removal and Installation" (Passenger side).
  2.  Disconnect seat belt buckle harness connector.
  3.  Remove seat belt buckle anchor bolt and seat belt buckle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Removal and installation
...
