Nissan Rogue Service Manual: Front regulator

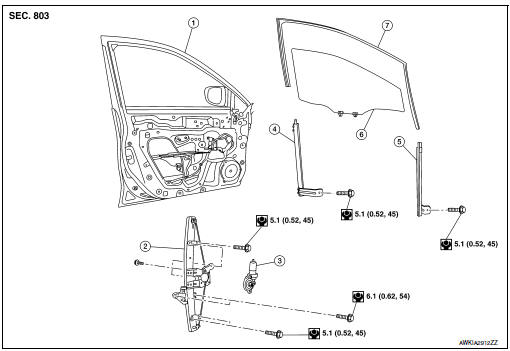

Exploded View

Exploded View

  1. Front door panel
  2. Front door regulator
  3. Front door power window motor
  4. Front door glass run rear
  5. Front door glass run front
  6. Front door glass
  7. Front door glass rubber run

Removal and Installation

REMOVAL

  1.  Remove the front door finisher. Refer to INT-15, "Removal and Installation".

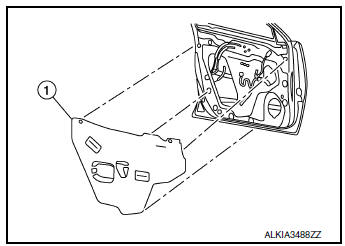

  2.  Partially remove vapor barrier.

Removal

  1. Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window door lock/unlock switch RH (RH door).
  2.  Operate the power window and door lock/unlock switch (LH door) or front door power window motor and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to front door glass bolts can be seen.

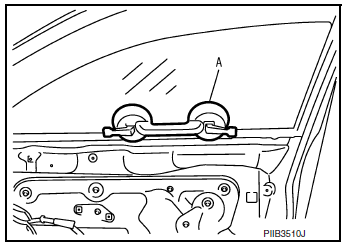

  3. Raise the front door glass and hold in place using a suitable tool (A).

Removal

  1. Disconnect the harness connector from the front power window motor.

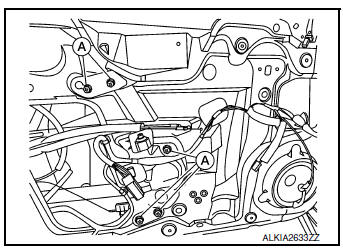

  2. Remove the bolts (A) and remove the front door glass regulator.

Removal

INSPECTION AFTER REMOVAL

Check the front door glass regulator for the following items:

If a malfunction is detected, replace or grease it.

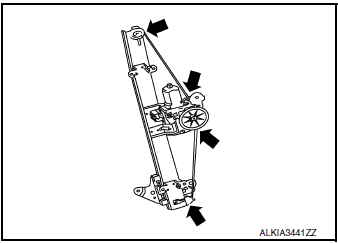

The arrows in the figure show the application points of the suitable multi-purpose grease, if needed.

Inspection after removal

Inspection and Adjustment

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

FITTING INSPECTION

Front door glass
Exploded View Front door Front regulator Front power window motor Front door glass rear run Front door glass front run Front door glass  Front door glass rubber run Remo ...

Front power window motor
Removal and Installation REMOVAL  Remove front door glass regulator. Refer to GW-16, "Removal and Installation".  Remove screws (A) and front power window motor (1) from ...
