Nissan Rogue Service Manual: Front door glass

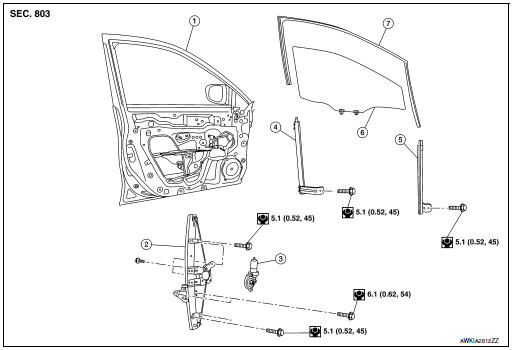

Exploded View
- Front door
- Front regulator
- Front power window motor
- Front door glass rear run
- Front door glass front run
- Front door glass
- Front door glass rubber run
Removal and Installation
REMOVAL
- Remove the front door finisher. Refer to INT-15, "Removal and Installation" .

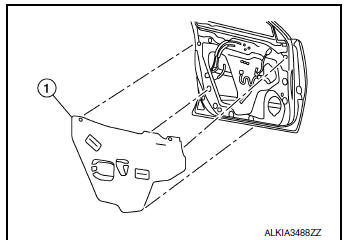

- Remove the vapor barrier (1).
- Temporarily reconnect the main power window and door lock/unlock switch (LH door) or power window and door lock/unlock switch RH (RH door).
- Operate the main power window and door lock/unlock switch (LH door) or front door power window motor and door lock/unlock switch RH (RH door) to raise/lower the front door glass until the front door regulator to front door glass bolts can be seen.

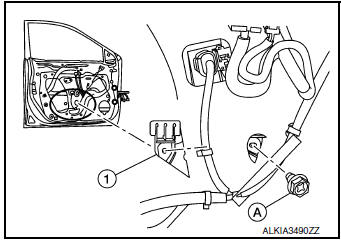

- Remove the front door glass regulator (1) to front door glass bolts (A).
- While holding the front door glass, raise it at the rear end and pull the front door glass out of the sash toward the outside of the door.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
- When the main power window and door lock/unlock switch or front power window and door lock/ unlock switch RH is removed it is necessary to perform the initialization procedure. Refer to PWC- 27, "ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement".
- Tighten bolts to specification. Refer to GW-14, "Exploded View".
FITTING INSPECTION

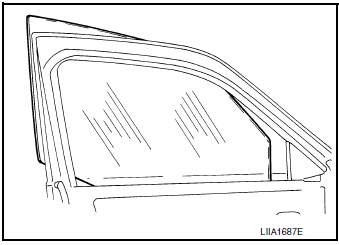

- Check that the front door glass is fit securely into the glass run groove.
- Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to the sash is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass regulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.
