Nissan Rogue Owners Manual: Forward Collision Warning (FCW) system (if so equipped)
The Forward Collision Warning (FCW) system will warn the driver by flashing the FCW indicator light and providing a warning chime when your vehicle is getting close to the vehicle ahead in the traveling lane.
The FCW system will function when your vehicle is driven at speeds of approximately 10 MPH (15 km/h) and above.
Forward Collision Warning (FCW) system

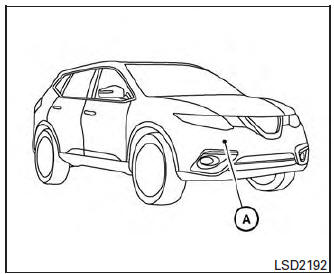

The FCW system uses the distance sensor A located behind the front bumper to measure the distance to the vehicle ahead. When the system judges that your vehicle is getting close to the vehicle ahead in the travel lane, FCW Indicator (white) on the instrument panel flashes and a warning chime sounds.
The FCW system can be turned on/off by using the settings menu on the information display. For additional information, refer to “How to enable/disable the FCW system” using the settings menu in this section.
FCW Indicator (orange)
Cruise control operations
The cruise control allows driving at a speed between
25 - 89 MPH (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the
ON·OFF switch ON. Th ...
Approach warning
Approach warning
NOTE:
The warning chime may sound and the FCW
indicator may blink when the distance sensor
detects vehicles in other lanes A or
objects on the side of the road A . This may
...
