Nissan Rogue Service Manual: Floor trim

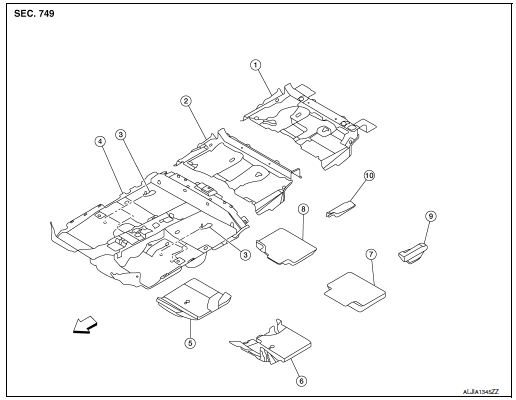

Exploded View

Exploded View

  1. Rear floor trim (with third row seat)
  2.  Rear floor trim (without third row seat)
  3. Floor trim hook
  4.  Front floor trim
  5. Front floor spacer (RH)
  6. Front floor spacer (LH)
  7.  Rear floor spacer (LH)
  8. Rear floor spacer (RH)
  9. Third row floor spacer (LH)
  10.  Third row floor spacer (RH)

Front

Removal and Installation

REMOVAL - Front Floor Trim

CAUTION: Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three minutes.

  1.  Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
  2.  Remove front door welts (LH/RH). Refer to INT-23, "BODY SIDE WELT : Removal and Installation - Front Door Welt".
  3.  Remove rear door welts (LH/RH). Refer to INT-23, "BODY SIDE WELT : Removal and Installation - Rear Door Welt".
  4.  Remove driver and passenger seat (LH/RH). Refer to SE-32, "DRIVER SIDE : Removal and Installation".
  5.  Remove rear seat. Refer to SE-39, "Removal and Installation".
  6.  Disconnect harness connectors from seatbelt pretensioners.
  7. Remove dash side finisher (LH/RH). Refer to INT-24, "DASH SIDE FINISHER : Removal and Installation".
  8. Remove cvt shift selector. Refer to TM-194, "Removal and Installation".
  9.  Remove center pillar upper finisher (LH/RH). Refer to INT-21, "CENTER PILLAR UPPER FINISHER : Removal and Installation".
  10.  Remove the front floor connecting ducts (LH/RH). Refer to VTL-10, "FRONT FLOOR DUCT : Removal and Installation - Front Floor Connecting Duct".
  11.  Disconnect front parking brake cable from rear parking brake cable and remove bolts from parking brake cable hold down. Refer to PB-7, "Exploded View".
  12.  Disconnect heating and cooling unit assembly drain hose from floor.

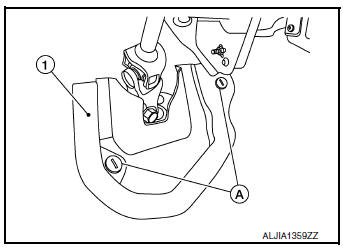

  13.  Release clips (A) using a suitable tool and remove steering joint floor cover (1).

REMOVAL - Front Floor Trim

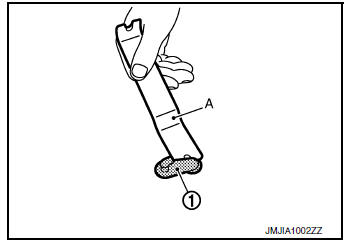

  1. Remove floor trim hooks (1) using a suitable tool (A) and front floor trim.

REMOVAL - Front Floor Trim

  1. Remove the following parts (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

REMOVAL - Rear Floor Trim

CAUTION: Before servicing, turn the ignition switch off, disconnect both battery cables and wait at least three minutes.

  1.  Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation".
  2.  Partially remove front door welts (LH/RH). Refer to INT-23, "BODY SIDE WELT : Removal and Installation - Front Door Welt".
  3.  Partially remove rear door welts (LH/RH). Refer to INT-23, "BODY SIDE WELT : Removal and Installation - Rear Door Welt".
  4.  Remove rear seat assembly. Refer to SE-39, "Removal and Installation".
  5.  Remove seat belt lower anchor bolt (LH/RH).

    CAUTION: Before removing the seat belt lower anchor bolt, note the positions of washers and spacers for correct installation.

  6. Remove luggage side lower finisher (LH/RH). Refer to INT-34, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation - With Third Row Seat".
  7.  Remove third row seat assembly (if equipped). Refer to SE-43, "Removal and Installation".
  8.  Remove rear floor trim.

INSTALLATION

Installation is in the reverse order of removal.
