Nissan Rogue Owners Manual: Flexible seating

Nissan Rogue Owners Manual / Safety—Seats, seat belts and supplemental restraint system / Seats / Flexible seating

WARNING
  •  Never allow anyone to ride in the cargo area or on the rear seats when they are in the fold-down position. In a collision, people riding in these areas without proper restraints are more likely to be seriously injured or killed.
  •  Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. Be sure everyone in your vehicle is in a seat and using a seat belt properly.
  •  Do not fold down the rear seats when occupants are in the rear seat area or any luggage is on the rear seats.
  •  Head restraints/headrests should be adjusted properly as they may provide significant protection against injury in an accident. Always replace and adjust them properly if they have been removed for any reason.
  • If the head restraints/headrests are removed for any reason, they should be securely stored to prevent them from causing injury to passengers or damage to the vehicle in case of sudden braking or an accident.
  •  When returning the seatbacks to the upright position, be certain they are completely secured in the latched position.

    If they are not completely secured, passengers may be injured in an accident or sudden stop.

  •  Properly secure all cargo to help prevent it from sliding or shifting. Do not place cargo higher than the seatbacks.

    In a sudden stop or collision, unsecured cargo could cause personal injury.

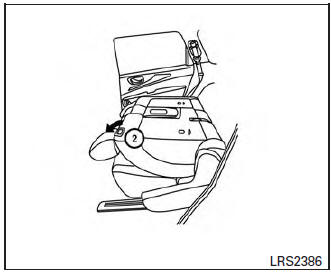

For vehicles not equipped with 3rd row seating
For vehicles not equipped with 3rd row seating

Folding the 2nd row bench seat

To fold the 2nd row bench seat flat for maximum cargo hauling:

  1.  Make sure that the head restraints/headrests are lowered. For maximum cargo hauling, remove the center head restraint/headrest. To remove the head restraints/headrests, push and hold the lock knob while moving the head restraint/headrest in an upward direction.

    Store the head restraints/headrests properly so they are not loose in the vehicle.

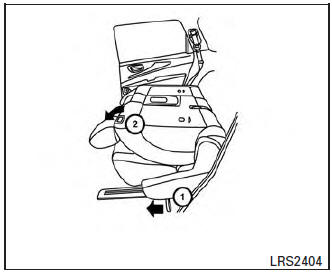

For vehicles equipped with 3rd row seating
For vehicles equipped with 3rd row seating

  1. Stow the 2nd row seat belts in the seat belt hooks found on the sides of the vehicle.
  2.  For vehicles equipped with 3rd row seating, pull the strap 1 on the lower side of the outboard seats and lift up on the recline lever 2 located on the top of the outboard seats to fold the seatbacks flat. For vehicles not equipped with 3rd row seating, lift up on the recline lever 2 on the top of the outboard seats to fold the seatbacks flat.
  3.  To return the 2nd row bench seats to a seating position, push up on the seatback until it latches in place.

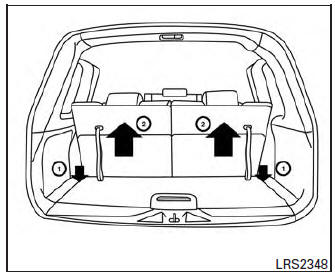

Folding the 3rd row seats (If so equipped)
Folding the 3rd row seats (If so equipped)

Folding the 3rd row seats (If so equipped)

To fold the 3rd row seats flat for maximum cargo capacity:

  1.  Make sure the head restraints/headrests are all the way down.
  2.  Pull the strap 1 to release the seat.
  3.  Once released, push the seatback forward 2 .

To return the 3rd row seats to a seating position:

  1.  Use the pull straps 1 to raise each seatback.

    Pull back until the seatback latches into position. Make sure to properly raise each seatback to an upright and secured position.

WARNING

When the seat is returned to the normal seating position, the head restraints/headrests must be returned to the upright position to properly protect vehicle occupants.

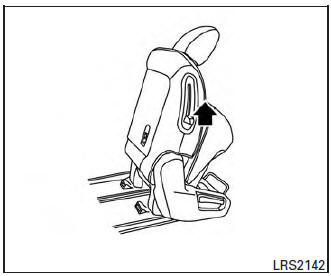

One touch walk-in function (if so equipped)
One touch walk-in function (if so equipped)

One touch walk-in function (if so equipped)

The 3rd row can be accessed from outside the vehicle by using the seatback release lever located on the 2nd row seatback. If a child safety seat is installed on the passenger’s side of the 2nd row seat, the 3rd row can be accessed without removing the child safety seat.

Multi-mode

WARNING

When returning the seat to its original position, confirm that the seat and seatback are locked properly.



CAUTION
  •  Be careful not to pinch your hand or foot or bump your head when operating the walk-in seat.
  •  Do not drive with the 2nd row seat tipped up.
  •  Be careful not to allow the 2nd row seat to pinch, hit any part of your body or other people when operating the 2nd row seat. Make sure the seat path is clear of all objects before moving the seat.

To enter the 3rd row from outside the vehicle, lift up on the seatback lever located on the upper outboard side of the seatback on the 2nd row bench seat. This will release the back of the seat and fold up the seat cushion. This will also release the seat tracks so you will be able to slide the seat forward or backward.

Slide the entire seat forward for access to the 3rd row.

To return the seat to a locked position, push the upper seatback rearward until the seatback and tracks are locked. Push the seat cushion down.

Child seat access mode

The passenger’s side of the 2nd row seat can be slid forward for easy entry or exit from the 3rd row bench seat without a child safety seat being removed.

To enter the 3rd row from outside the vehicle, lift up on the seatback lever located on the upper outboard side of the seatback on the 2nd row bench seat. This will release the seatback. Then tilt the seat and release the tracks so you will be able to slide the seat forward or backward.

Slide the entire seat forward for access to the rear seats.

To return the seat to a locked position, push the upper seatback rearward until the seatback and track are locked.

WARNING
  •  Do not leave a child in the child safety seat when operating the child seat access mode.
  •  When returning the seat to its original position, confirm that the seat and seatback are locked properly.



CAUTION
  •  Be careful not to pinch your hand or foot or bump your head when operating the walk-in seat.
  •  Do not drive with the 2nd row seat tipped up.
  •  Be careful not to allow the 2nd row seat to pinch, hit any part of your body or other people when operating the 2nd row seat. Make sure the seat path is clear of all objects before moving the seat.

Exiting the 3rd row

To exit the 3rd row from either seating position, lift the upper seatback release lever to the uppermost position. This will release the back of the seat, then fold the seat cushion up and release the tracks.

Slide the entire seat forward.

To return the seat to a locked position, push the upper seatback rearward until the seatback and track are locked.

WARNING

When returning the seat to its original position, confirm that the seat and seatback are locked properly.



CAUTION

Be careful not to pinch your hand or foot or bump your head when operating the walk-in seat.
2nd row bench seat adjustment
Outboard seats Forward and backward Pull the center of the bar 1 up and hold it while you slide the seat forward or backward to the desired position. Release the bar to lock the seat in posit ...

Head restraints/Headrests
WARNINGHead restraints/headrests supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head r ...
