Nissan Rogue Service Manual: Engine oil
Inspection
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level.
If engine is already started, stop
it and allow 5 minutes before checking.
- Pull out oil level gauge and wipe it clean.

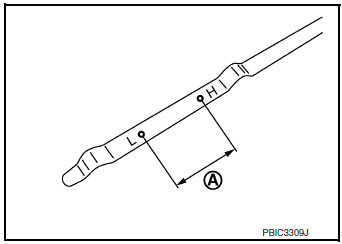

- Insert oil level gauge and check the engine oil level is within
the
range (A) as shown.
- If it is out of range, adjust it.
ENGINE OIL APPEARANCE
ENGINE OIL LEAKS
Check for engine oil leaks around the following areas:
- Oil temperature sensor
- Oil level sensor
- Oil level gauge assembly O-ring.
- Crankshaft position sensor
- Camshaft position sensors
- Oil cooler
- Oil pan (upper and lower)
- Oil pan drain plug
- Oil pressure switch
- Oil filter
- Intake valve timing intermediate lock control solenoid valve
- Intake valve timing control solenoid valve
- Exhaust valve timing control solenoid valve
- Front cover
- Mating surface between cylinder head and camshaft bracket
- Mating surface between cylinder block and cylinder head
- Mating surface between cylinder head and rocker cover
- Crankshaft oil seals (front and rear)
OIL PRESSURE CHECK
WARNING:
- Be careful not to get burn yourself, as engine oil may be hot.
- When checking engine oil pressure, CVT shift lever should be in
"P" position. Be sure to apply parking
brake.
- Check the engine oil level.
- Remove fender protector side cover (RH). Refer to EXT-28, "FENDER
PROTECTOR : Exploded View".
- Disconnect harness connector at oil pressure switch and remove oil
pressure switch using suitable tool.
CAUTION:
Never drop or shock oil pressure switch.

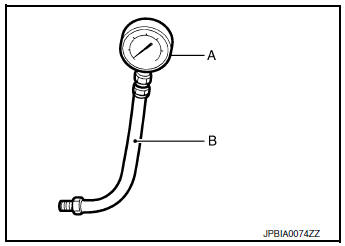

- Install suitable tools (A/B).
- Start the engine and warm it up to normal operating temperature.
- Check the engine oil pressure with engine running under no-load.
NOTE:
- When engine oil temperature is low, engine oil pressure becomes
high.
- If difference is extreme, check oil passage and oil pump for
engine oil leaks.
Engine oil pressure : Refer to LU-17, "Oil Pressure".
- After the inspections, install oil pressure switch as follows:
- Remove old liquid gasket adhering to oil pressure switch and
engine.
- Apply liquid gasket and tighten oil pressure switch to the
specification.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-22, "Recommended
Chemical Products
and Sealants".
Tightening torque : Refer to EM-92, "Exploded View".
- Check engine oil level.
- After warming up engine, check that there are no engine oil leaks
with the engine running.
- Install fender protector side cover (RH). Refer to EXT-28, "FENDER
PROTECTOR : Exploded View".
Draining
WARNING:
- Be careful not to get burn yourself, as engine oil may be hot.
- Prolonged and repeated contact with used engine oil may cause
skin cancer. Try to avoid direct skin
contact with used engine oil. If skin contact is made, wash thoroughly with
soap or hand cleaner as
soon as possible.
- Warm up the engine, and check for engine oil leaks from engine
components. Refer to LU-7, "Inspection".
- Stop the engine and wait for 10 minutes.
- Loosen oil filler cap.

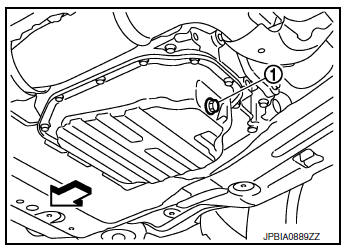

- Remove drain plug (1) and then drain engine oil.
: Front
Refilling
- Install drain plug with new drain plug washer. Refer to EM-32, "Exploded
View".
CAUTION: Be sure to clean drain plug and install with new drain
plug washer.
Tightening torque : Refer to EM-32, "Exploded View".
- Refill with new engine oil.
Engine oil specification and viscosity: Refer to MA-11, "Engine Oil
Recommendation".
Engine oil capacity : Refer to LU-17, "Oil Capacity".
CAUTION:
- The refill capacity depends on the engine oil temperature and
drain time. Use these specifications
for reference only.
- Always use oil level gauge to determine the proper amount of
engine oil in engine.
- Warm up the engine and check area around drain plug and oil filter
for engine oil leaks.
- Stop the engine and wait for 5 minutes.
- Check the engine oil level. Refer to LU-7, "Inspection".
Removal and Installation
REMOVAL
Remove fender protector side cover (RH). Refer to EXT-28, "FENDER
PROTECTOR : Exploded View".
Drain engine oil. Refer to LU-8, "Dr ...
