Nissan Rogue Service Manual: ECU diagnosis information

AROUND VIEW MONITOR CONTROL UNIT

Reference Value

VALUES ON THE DIAGNOSIS TOOL

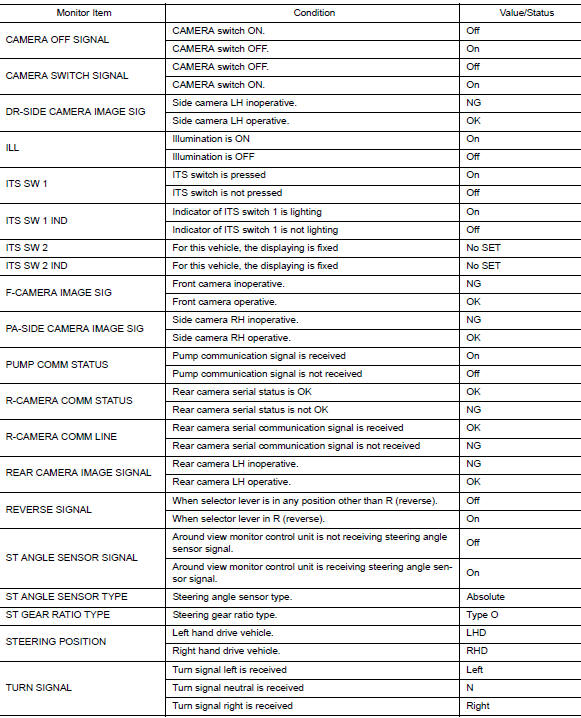

Values on the diagnosis tool

Values on the diagnosis tool

TERMINAL LAYOUT

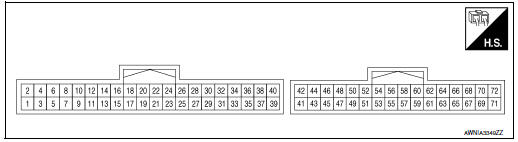

Terminal layout

PHYSICAL VALUES

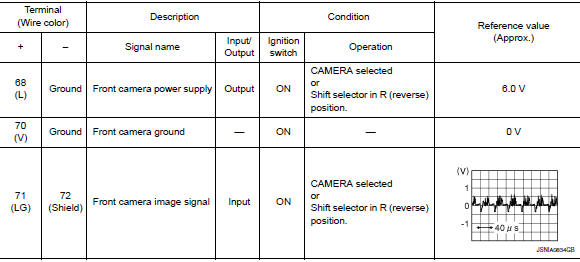

Physical values

Physical values

Physical values

DTC Index

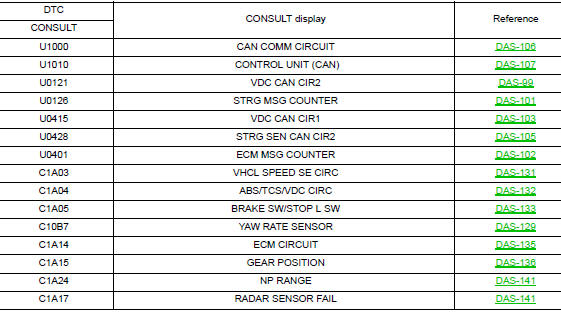

DTC Index

DISTANCE SENSOR

Reference Value

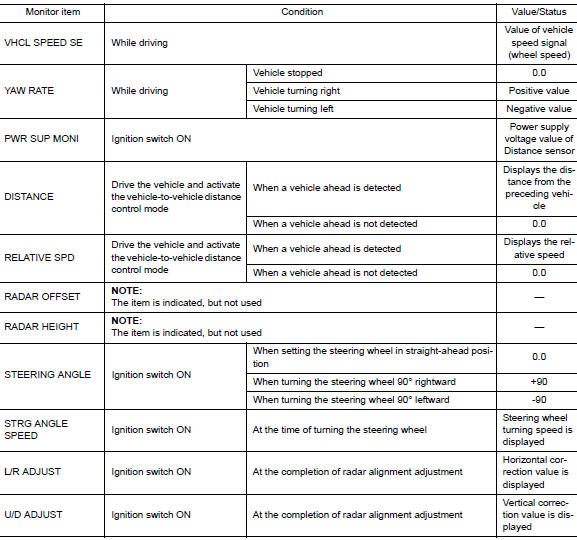

VALUES ON THE DIAGNOSIS TOOL

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Values on the diagnosis tool

TERMINAL LAYOUT

Terminal layout

PHYSICAL VALUES

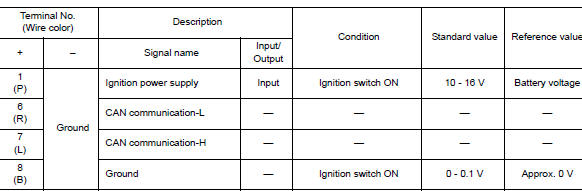

Physical values

Fail-safe (Distance Sensor)

If a malfunction occurs in the distance sensor, around view monitor control unit cancels control, sounds a beep, and turns ON the FCW system warning in the information display.

DTC Inspection Priority Chart

If multiple DTCs are detected simultaneously, check them one by one depending on the following DTC inspection priority chart.

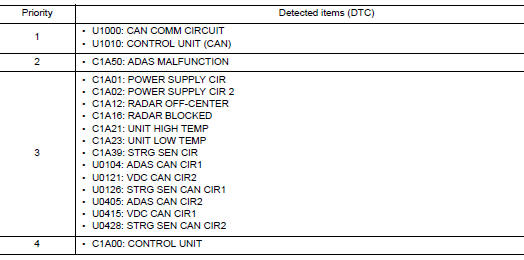

DTC Inspection Priority Chart

DTC Index

DTC Index

DTC Index

REAR VIEW CAMERA WASHER CONTROL UNIT

Reference Value

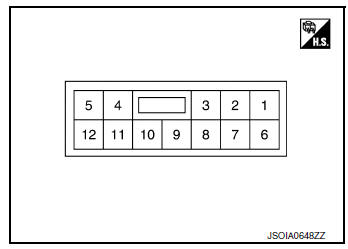

TERMINAL LAYOUT

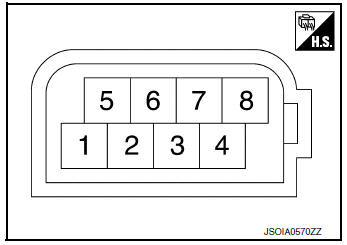

Terminal layout

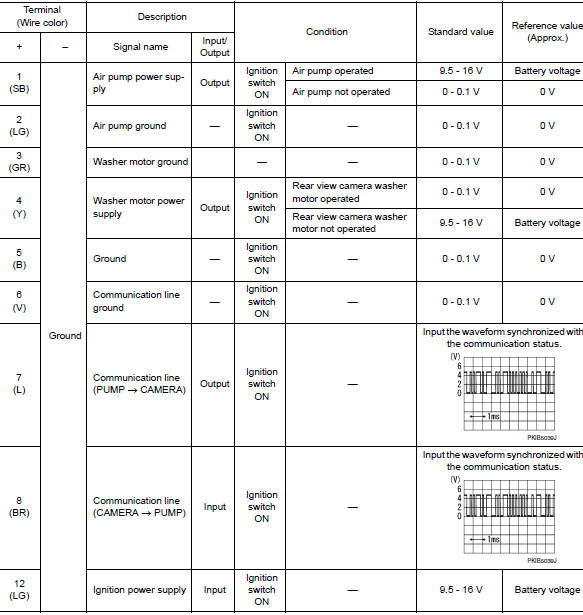

PHYSICAL VALUES

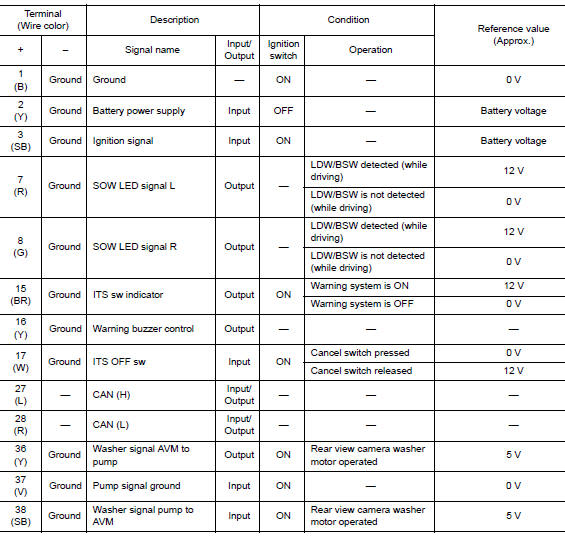

Physical values

System description
COMPONENT PARTS Component Parts Location View with back door finisher removed View with glove box assembly removed  View with front bumper removed  View with front bumper remo ...

Wiring diagram
DRIVER ASSISTANCE SYSTEMS Wiring Diagram ...
