Nissan Rogue Service Manual: ECU diagnosis information

AUDIO UNIT

Reference Value

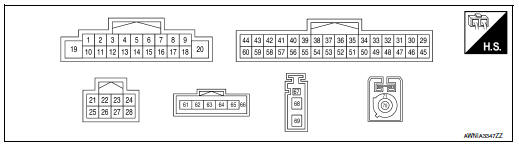

TERMINAL LAYOUT

Terminal layout

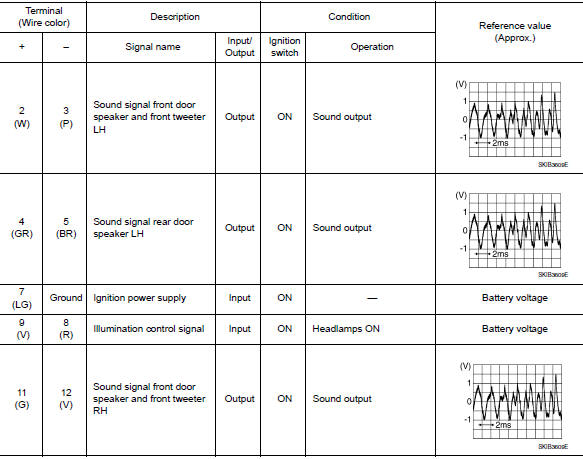

PHYSICAL VALUES

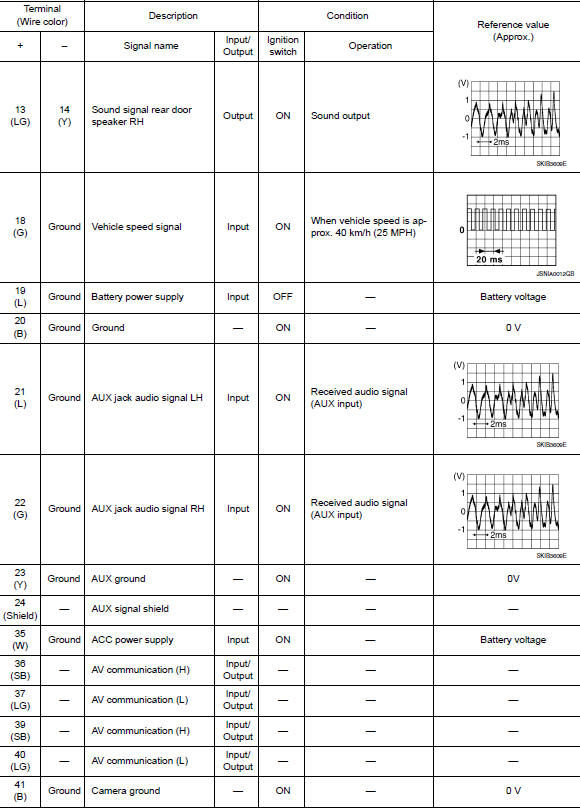

Physical values

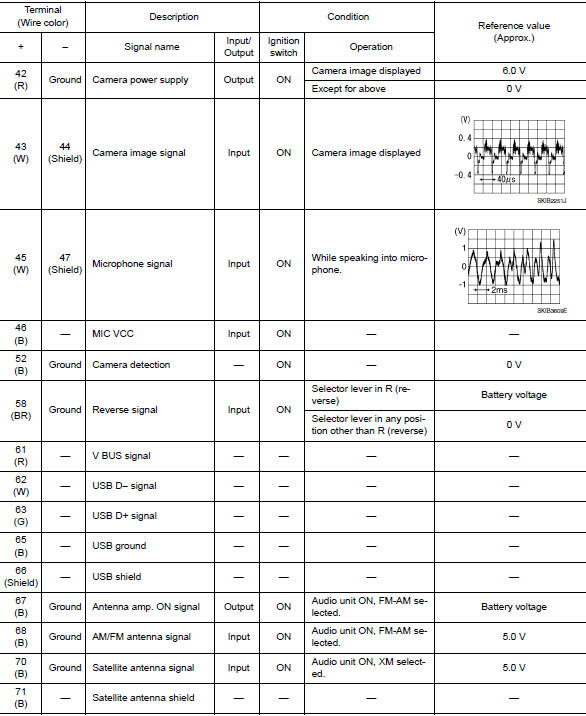

Physical values

Physical values

System description
COMPONENT PARTS Component Parts Location Center of back door No. Component Function 1 Rod antenna Refer to AV-14, "Rod Antenna, Antenna Amp., S ...

Wiring diagram
DISPLAY AUDIO Wiring Diagram ...
