Nissan Rogue Service Manual: Door mirror rear finisher

Removal and Installation

REMOVAL

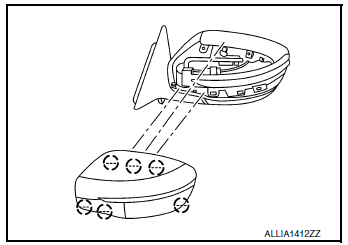

  1.  Beginning at the top of door mirror rear finisher and working around, use a suitable tool to release the pawls and remove door mirror rear finisher.

    : Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: After installation, visually check that all the pawls are securely engaged.
