Nissan Rogue Service Manual: Door mirror glass

Removal and Installation

REMOVAL

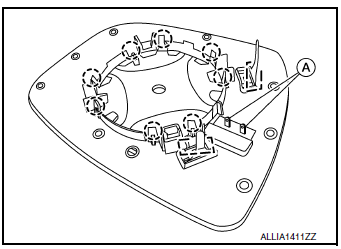

  1.  Release the metal clips and pawls that retain the door mirror glass using a suitable tool, disconnect the harness connectors (A) (if equipped) from the door mirror glass and remove.

    Metal clip
    : Pawl

Removal

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: After installation, visually inspect that metal clips and pawls are securely engaged.
