Nissan Rogue Service Manual: Diagnosis system (combination meter)

Description

COMBINATION METER SELF-DIAGNOSIS MODE

The following meter functions can be checked during Combination Meter Self-Diagnosis Mode:

•  Pointer sweep of speedometer, tachometer and gauges.
•  Illumination of all LCD segments and color patterns for meter displays.
•  Illumination of all lamps/LEDs that are controlled by the combination meter (regardless of switch status).

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:

•  Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to MWI-59, "COMBINATION METER : Diagnosis Procedure". Replace combination meter if power supply and ground circuits are found to be normal and self-diagnosis mode does not start. Refer to MWI-82, "Removal and Installation".
•  Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter selfdiagnosis mode will exit upon turning the ignition switch to OFF.

How to Initiate Self-Diagnosis Mode

1.  Turn ignition switch OFF.

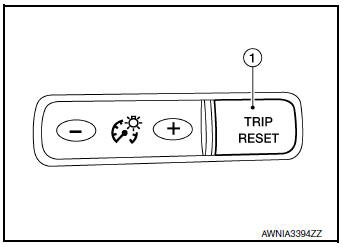

2.  While pressing the trip reset switch (1), turn ignition switch ON.
3.  Keep the trip reset switch for 1 seconds or more.
4.  Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
5.  “Work instruction code” is indicated in the top portion of information display and self-diagnosis is started.

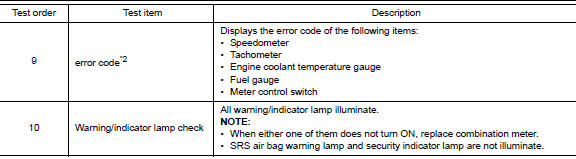

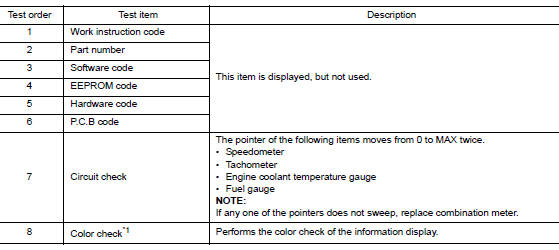

6.  The mode switches in the order shown below each time the trip reset switch is pressed.

   NOTE: If the trip reset switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically cancelled.

NOTE: When the trip reset switch is pressed during the indication of Test order “10,” test item returns to Test order “2.”

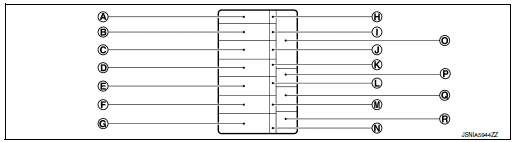

*1: Color Check

1. Blue
2. Red
3. Pink
4. Green
5. Light blue
6. Yellow
7. White
8. White
9. Black
10. Light blue
11. Black
12. Pink
13. Black
14. Blue
15. Black
16. Dark blue
17. White
18. Blue

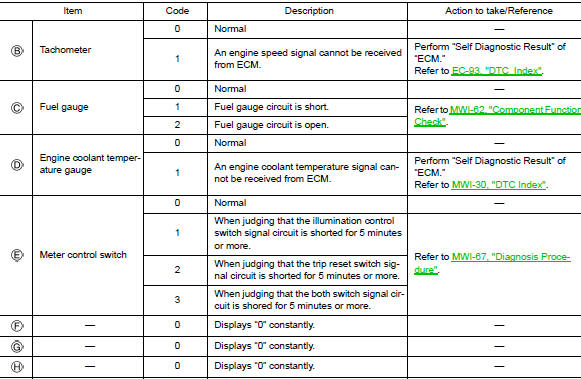

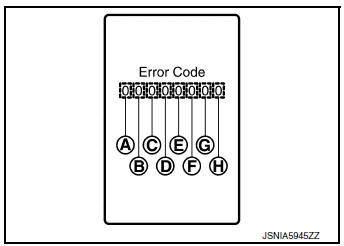

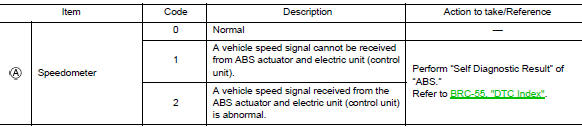

*2: Error Code

How to Reset Error Code

Error codes stored in combination meter can be reset by following the instructions below:

1.  Turn ignition switch OFF.
2.  While pressing the trip reset switch, turn ignition switch ON.
3.  Keep the trip reset switch for 1 seconds or more.
4.  Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
5.  Turn ignition switch OFF.
6.  Perform self-diagnosis and check that the error codes are reset.

CONSULT Function (METER/M&A)

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

SELF DIAG RESULT

Refer to MWI-30, "DTC Index".

DATA MONITOR

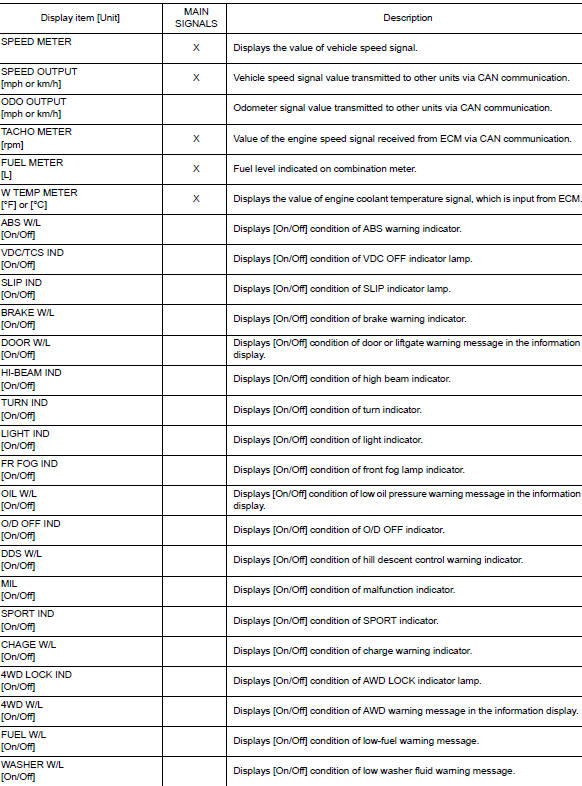

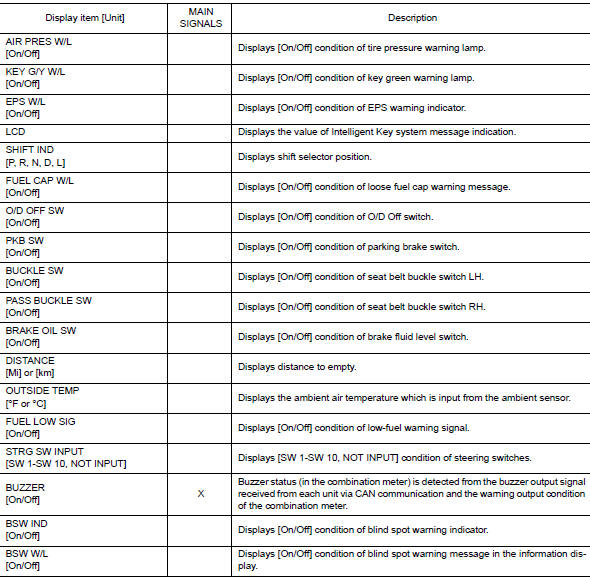

Display Item List

SPECIAL FUNCTION

Special menu

W/L ON HISTORY

•  “W/L ON HISTORY” indicates the “TIME” when the warning/ indicator lamp is turned on.
•  The “TIME” above is:

•  0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.
•  1 - 39: The number of times the engine was restarted after the 0 condition.
•  NO W/L ON HISTORY: No warning/indicator lamp history is stored.

NOTE:

•  W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
•  Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets low.
