Nissan Rogue Service Manual: Diagnosis system (combination meter)

Description

COMBINATION METER SELF-DIAGNOSIS MODE

The following meter functions can be checked during Combination Meter Self-Diagnosis Mode:

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:

How to Initiate Self-Diagnosis Mode

  1.  Turn ignition switch OFF.

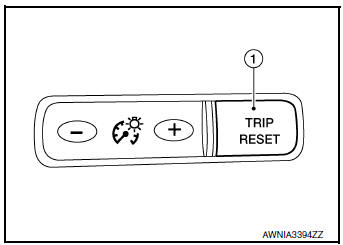

  2.  While pressing the trip reset switch (1), turn ignition switch ON.
  3.  Keep the trip reset switch for 1 seconds or more.
  4. Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
  5. “Work instruction code” is indicated in the top portion of information display and self-diagnosis is started.

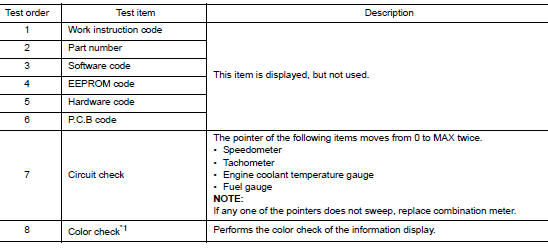

  6.  The mode switches in the order shown below each time the trip reset switch is pressed.

    NOTE: If the trip reset switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically cancelled.

How to Initiate Self-Diagnosis Mode

How to Initiate Self-Diagnosis Mode

How to Initiate Self-Diagnosis Mode

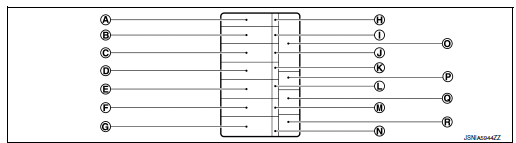

NOTE: When the trip reset switch is pressed during the indication of Test order “10,” test item returns to Test order “2.” *1: Color Check

How to Initiate Self-Diagnosis Mode

  1. Blue
  2. Red
  3. Pink
  4. Green
  5. Light blue
  6. Yellow
  7. White
  8. White
  9. Black
  10. Light blue
  11. Black
  12. Pink
  13. Black
  14. Blue
  15. Black
  16. Dark blue
  17. White
  18. Blue

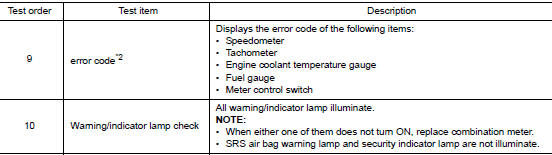

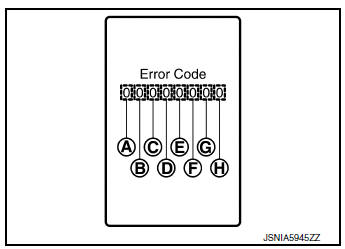

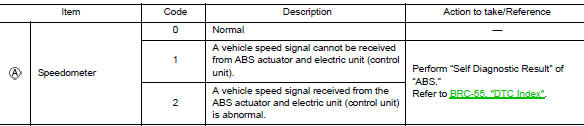

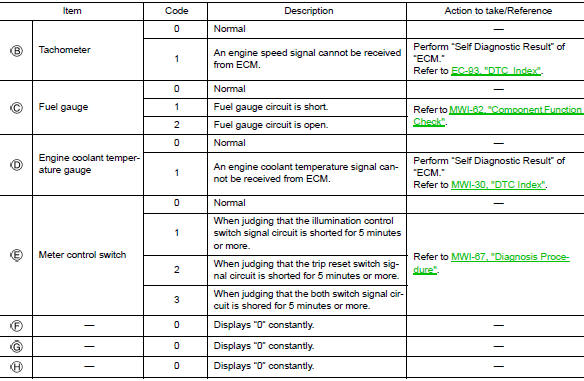

*2: Error Code

How to Initiate Self-Diagnosis Mode

How to Initiate Self-Diagnosis Mode

How to Initiate Self-Diagnosis Mode

How to Reset Error Code

Error codes stored in combination meter can be reset by following the instructions below:

  1.  Turn ignition switch OFF.
  2.  While pressing the trip reset switch, turn ignition switch ON.
  3.  Keep the trip reset switch for 1 seconds or more.
  4.  Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)
  5.  Turn ignition switch OFF.
  6.  Perform self-diagnosis and check that the error codes are reset.

CONSULT Function (METER/M&A)

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

Application items

SELF DIAG RESULT

Refer to MWI-30, "DTC Index".

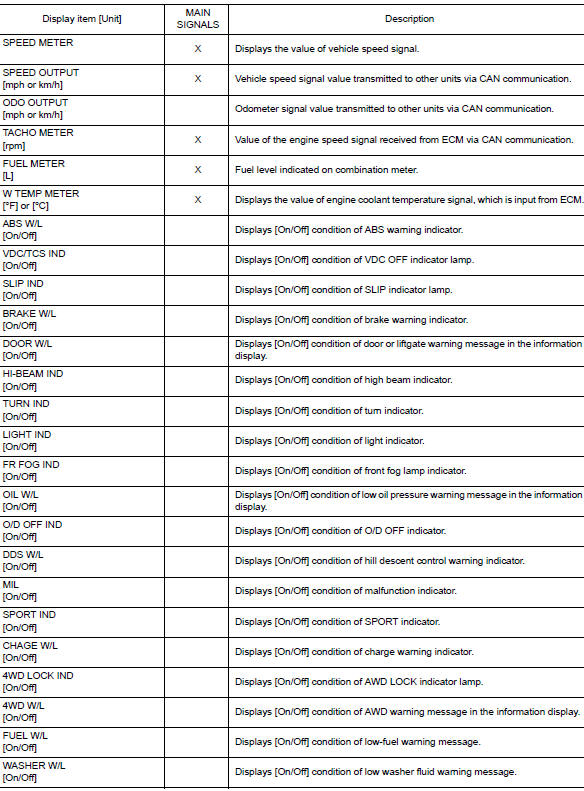

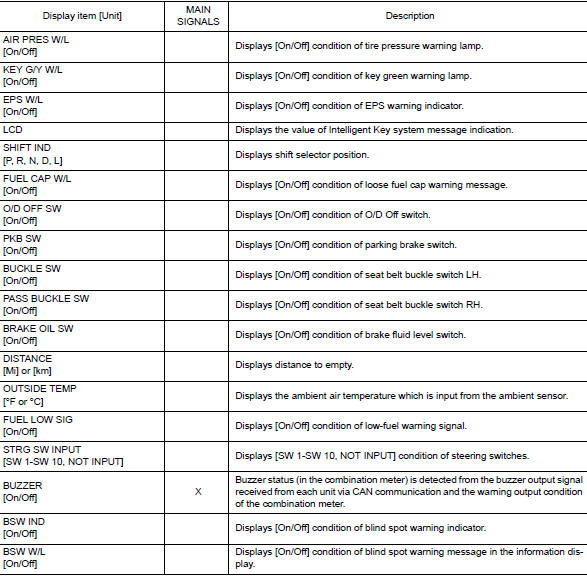

DATA MONITOR

Display Item List

Display Item List

Display Item List

SPECIAL FUNCTION

Special menu

Special menu

W/L ON HISTORY

NOTE:

Operation
Switch Name and Function STEERING SWITCH No. Switch name Operation Description 1 Enter/Up/Down switch Press The information display settings can be changed. ...
