Nissan Rogue Service Manual: Diagnosis system (BCM) (without intelligent key system)

Nissan Rogue Service Manual / Driver controls / Wiper & Washer / System description / Diagnosis system (BCM) (without intelligent key system)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic M

Description

Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration
  • The vehicle specification can be read and saved.
  •  The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

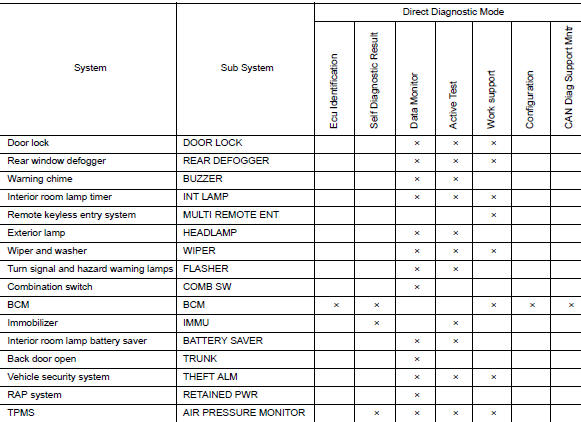

SYSTEM APPLICATION

BCM can perform the following functions.

System application

WIPER

WIPER : CONSULT Function (BCM - WIPER)

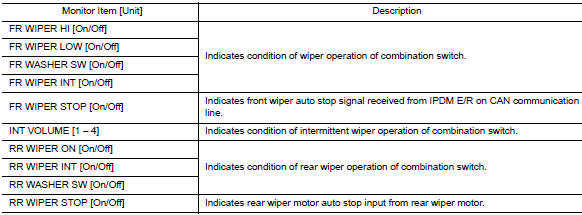

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial Setting

Diagnosis system (BCM) (with intelligent key system)
COMMON ITEM COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. Direct Diagnostic Mode De ...

Diagnosis system (IPDM E/R)
CONSULT Function (IPDM E/R) APPLICATION ITEM CONSULT performs the following functions via CAN communication with IPDM E/R. Direct Diagnostic Mode Description Ecu Identifi ...
