Nissan Rogue Service Manual: Diagnosis system (BCM) (with intelligent key system)

Nissan Rogue Service Manual / Driver controls / Interior Lighting System / System description / Diagnosis system (BCM) (with intelligent key system)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode

Description

Ecu Identification The BCM part number is displayed.
Self Diagnostic Result The BCM self diagnostic results are displayed.
Data Monitor The BCM input/output data is displayed in real time.
Active Test The BCM activates outputs to test components.
Work support The settings for BCM functions can be changed.
Configuration
  • The vehicle specification can be read and saved.
  •  The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr The result of transmit/receive diagnosis of CAN communication is displayed.

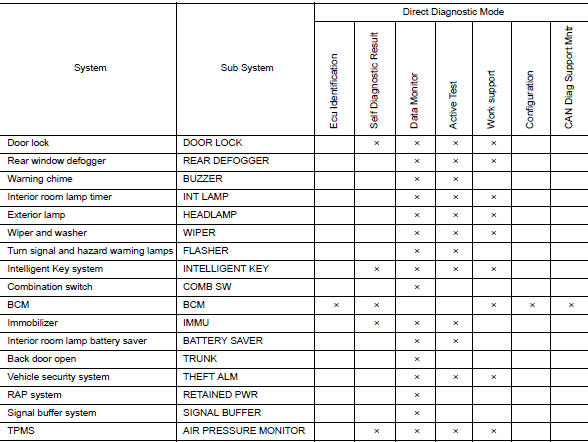

SYSTEM APPLICATION

BCM can perform the following functions.

System application

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

DATA MONITOR

Data monitor

ACTIVE TEST

Active test

WORK SUPPORT

Work support

*: Initial setting

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

DATA MONITOR

c

ACTIVE TEST

ACTIVE TEST

Active test

System
INTERIOR ROOM LAMP CONTROL SYSTEM INTERIOR ROOM LAMP CONTROL SYSTEM : System Description SYSTEM DIAGRAM OUTLINE  Interior room lamps* are controlled by interior room lamp timer control ...

Diagnosis system (BCM) (without intelligent key system)
COMMON ITEM COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. Direct Diagnostic Mode De ...
