Nissan Rogue Service Manual: Diagnosis system (BCM)

Nissan Rogue Service Manual / Suspension / Road Wheels & Tires / System description / Diagnosis system (BCM)

WITH INTELLIGENT KEY

WITH INTELLIGENT KEY : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode	Description
Ecu Identification	The BCM part number is displayed.
Self Diagnostic Result	The BCM self diagnostic results are displayed.
Data Monitor	The BCM input/output data is displayed in real time.
Active Test	The BCM activates outputs to test components
Work support	The settings for BCM functions can be changed.
Configuration	The vehicle specification can be read and saved. The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr	The result of transmit/receive diagnosis of CAN communication is displayed.

SYSTEM APPLICATION

BCM can perform the following functions.

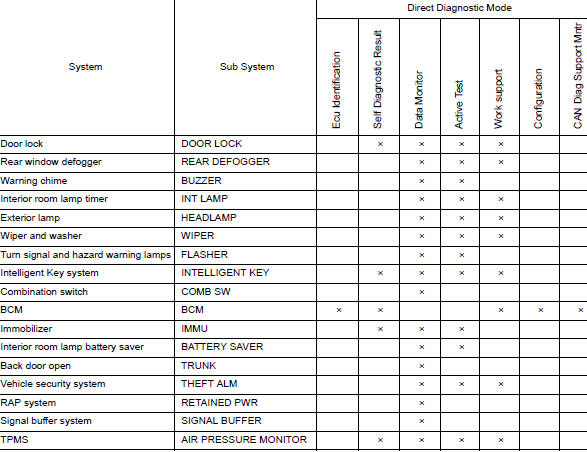

System application

WITH INTELLIGENT KEY : CONSULT Function (BCM-AIR PRESSURE MONITOR)

NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Activate and display TPMS sensor IDs
Display tire pressure reported by the TPMS sensor
Read TPMS DTCs
Register TPMS sensor IDs
Check Intelligent Key relative signal strength
Confirm vehicle Intelligent Key antenna signal strength

SELF DIAGNOSTIC RESULT

NOTE: Before performing Self Diagnostic Result, be sure to register the sensor ID or the actual malfunction may be different from that displayed on CONSULT.

Refer to BCS-48, "DTC Index".

DATA MONITOR

Monitor Item [Unit]	Description
AIR PRESS FL [kPa, kg/cm2 or Psi]	Indicates air pressure of front LH tire.
AIR PRESS FR [kPa, kg/cm2 or Psi]	Indicates air pressure of front RH tire.
AIR PRESS RR [kPa, kg/cm2 or Psi]	Indicates air pressure of rear RH tire.
AIR PRESS RL [kPa, kg/cm2 or Psi]	Indicates air pressure of rear LH tire.
ID REGST FL1 [Done/Yet]	Indicates ID registration status of front LH sensor.
ID REGST FR1 [Done/Yet]	Indicates ID registration status of front RH sensor.
ID REGST RR1 [Done/Yet]	Indicates ID registration status of rear RH sensor.
ID REGST RL1 [Done/Yet]	Indicates ID registration status of rear LH sensor.
WARNING LAMP [Off/On]	Indicates condition of low tire pressure warning lamp in combination meter.
BUZZER [Off/On]	Indicates condition of buzzer in combination meter.

ACTIVE TEST

Test Item	Description
FLASHER	This test is able to check turn signal lamp operation [Off/LH/RH].
HORN	This test is able to check horn operation [On].
WARNING LAMP	This test is able to check tire pressure warning lamp operation [On/Off].
ID REGIST WARNING	This test is able to check ID regist warning chime operation [On/Off].

WORK SUPPORT

Support Item	Description
ID READ	The registered ID number is displayed.
ID REGIST	Refer to WT-21, "Description".

WITHOUT INTELLIGENT KEY

WITHOUT INTELLIGENT KEY : CONSULT Function (BCM - COMMON ITEM)

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

Direct Diagnostic Mode	Description
Ecu Identification	The BCM part number is displayed.
Self Diagnostic Result	The BCM self diagnostic results are displayed.
Data Monitor	The BCM input/output data is displayed in real time.
Active Test	The BCM activates outputs to test components.
Work support	The settings for BCM functions can be changed.
Configuration	The vehicle specification can be read and saved. The vehicle specification can be written when replacing BCM.
CAN Diag Support Mntr	The result of transmit/receive diagnosis of CAN communication is displayed.

SYSTEM APPLICATION

BCM can perform the following functions.

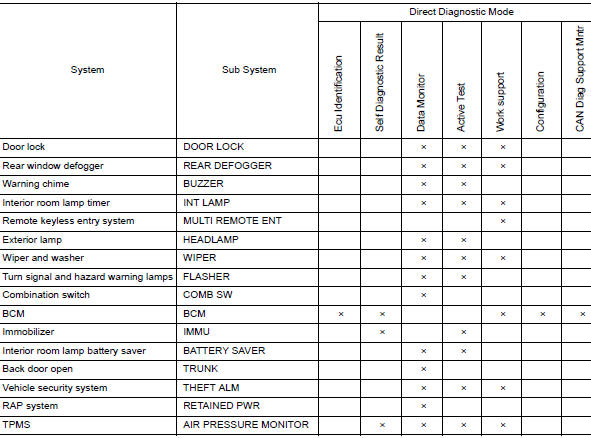

System application

WITHOUT INTELLIGENT KEY : CONSULT Function (BCM-AIR PRESSURE MONITOR)

NOTE: The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

Activate and display TPMS sensor IDs
Display tire pressure reported by the TPMS sensor
Read TPMS DTCs
Register TPMS sensor IDs

SELF DIAGNOSTIC RESULT

NOTE: Before performing Self Diagnostic Result, be sure to register the sensor ID or the actual malfunction may be different from that displayed on CONSULT.

Refer to BCS-108, "DTC Index".

DATA MONITOR

Monitor Item [Unit]	Description
AIR PRESS FL [kPa, kg/cm2 or Psi]	Indicates air pressure of front LH tire.
AIR PRESS FR [kPa, kg/cm2 or Psi]	Indicates air pressure of front RH tire.
AIR PRESS RR [kPa, kg/cm2 or Psi]	Indicates air pressure of rear RH tire.
AIR PRESS RL [kPa, kg/cm2 or Psi]	Indicates air pressure of rear LH tire.
ID REGST FL1 [Done/Yet]	Indicates ID registration status of front LH sensor.
ID REGST FR1 [Done/Yet]	Indicates ID registration status of front RH sensor.
ID REGST RR1 [Done/Yet]	Indicates ID registration status of rear RH sensor
ID REGST RL1 [Done/Yet]	Indicates ID registration status of rear LH sensor.
WARNING LAMP [Off/On]	Indicates condition of low tire pressure warning lamp in combination meter.
BUZZER [Off/On]	Indicates condition of buzzer in combination meter.

ACTIVE TEST

Test Item	Description
FLASHER	This test is able to check turn signal lamp operation [Off/LH/RH].
HORN	This test is able to check horn operation [On].
WARNING LAMP	This test is able to check tire pressure warning lamp operation [On/Off].
ID REGIST WARNING	This test is able to check ID regist warning chime operation [On/Off].

WORK SUPPORT

Support Item	Description
ID READ	The registered ID number is displayed.
ID REGIST	Refer to WT-21, "Description".
