Nissan Rogue Service Manual: CVT shift selector

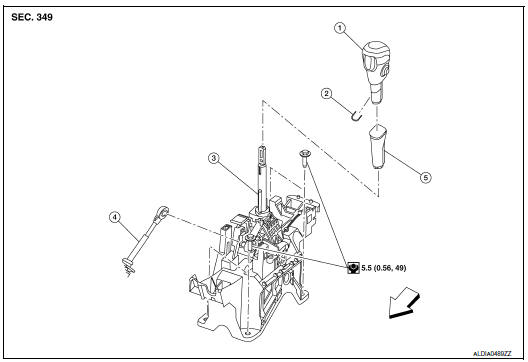

Exploded View

Exploded view

  1. Shift selector knob
  2. Lock pin
  3.  Shift selector assembly
  4. Control cable
  5. Shift selector knob cover

Front

Removal and installation

REMOVAL

  1. Apply the parking brake.

    CAUTION: Make sure the vehicle cannot move with the parking brake applied.

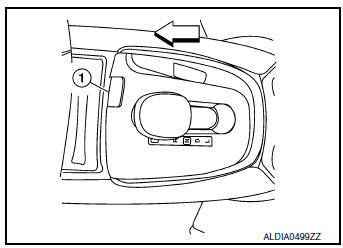

  2.  Move the shift selector with the following procedure.

Removal

: Front

Removal

Front

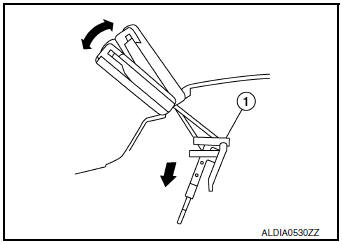

  1. Remove the shift selector knob with the following procedure.
  1.  Slide the selector lever knob cover (1) down.

    CAUTION: Do not damage the knob cover.

  2.  Pull out the lock pin (2) from the selector lever knob (3).
  3.  Pull the selector lever knob and the selector lever knob cover upwards to remove them.
  1.  Remove the center console assembly. Refer to IP-18, "Removal and Installation".
  2.  Shift the selector lever to “P” position.

Removal

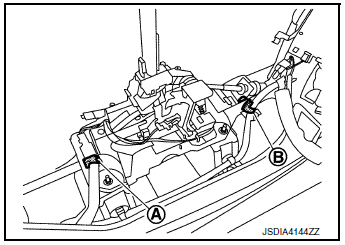

  1. Disconnect the shift selector connector (A) and remove harness clip (B).

Removal

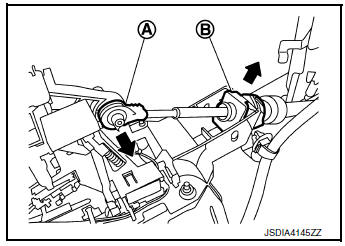

  1. Disconnect the tip (A) of control cable and remove socket (B) from the shift selector assembly.

Removal

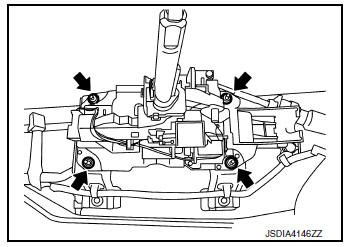

  1. Remove the shift selector assembly nuts ( ) and remove the shift selector assembly from the vehicle.

Removal

INSTALLATION

Installation is in the reverse order of removal.

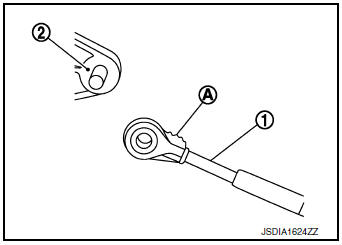

  1.  When connecting the control cable (1) to the shift selector assembly (2), face the grooved surface of the rib (A) up and insert the control cable until it stops.

NOTE: Apply multi-purpose grease to control cable eye before installation.

Installation

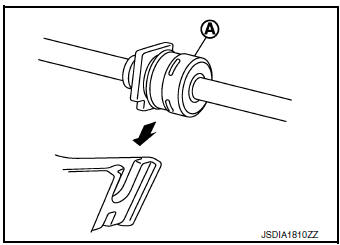

  1. Install the socket (A) onto the shift selector assembly.

CAUTION:

Installation

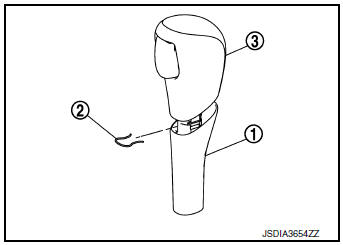

  1.  Install the lock pin (2) onto the selector lever knob (3).
  2.  Install the knob cover (1) onto the selector lever knob.
  3.  Shift the selector lever to “N” position.
  4.  Insert the selector lever knob into the selector lever until a slight touch is felt.
  5.  Press and hold the selector lever knob button and insert selector lever knob into selector lever until it clanks.

    CAUTION: Do not strike the selector lever knob to press it into place.

  6.  After installing selector lever knob, pull the knob to check that it does not become disconnected

Installation

Inspection

INSPECTION AFTER INSTALLATION

Removal and installation
...

Control cable
