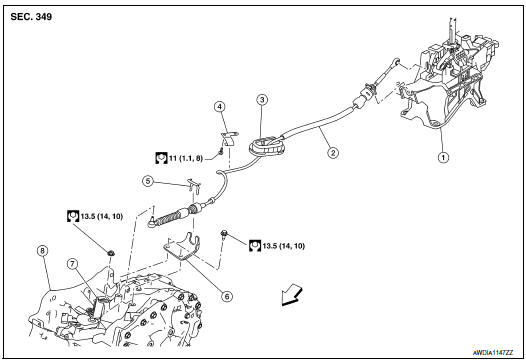

Exploded View

Exploded View

Shift selector
Control cable
Retainer grommet
Lock plate
Bracket
Manual lever
Transaxle assembly

Front

Removal and Installation

CAUTION: Always apply the parking brake before performing removal and installation.

REMOVAL

Apply the parking brake.
CAUTION: Make sure the vehicle cannot move with the parking brake applied.
Remove battery tray. Refer to PG-76, "Removal and Installation (Battery Tray)".

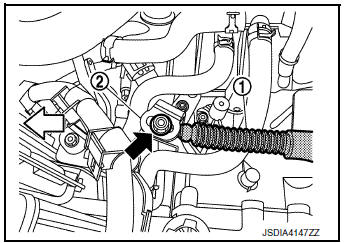

Remove the control cable nut ( ) and remove the control cable (1) from the manual lever (2).

Removal

: Front

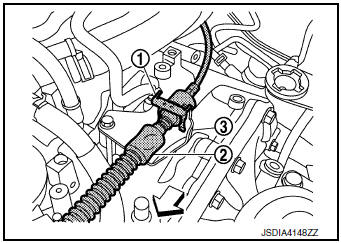

Remove the lock plate (1) and remove the control cable (2) from bracket (3).

Removal

: Front

Remove the center console assembly. Refer to IP-18, "Removal and Installation".

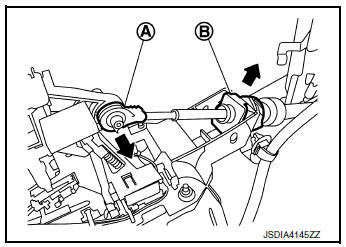

Disconnect the tip (A) of control cable and remove the socket (B) from the CVT shift selector assembly.

Removal

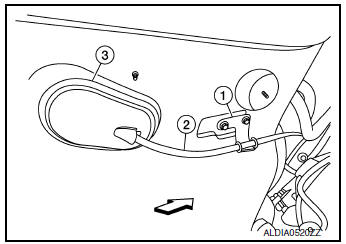

Remove the control cable (1) from bracket (2).
Remove by pushing retainer grommet (3) upward.

Removal

: Front

Remove the control cable.

INSTALLATION

Installation is in the reverse order of removal.

Pay attention to the following when connecting the control cable to the CVT shift selector assembly.

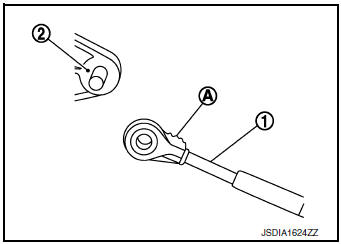

When connecting the control cable (1) to the CVT shift selector assembly (2), face the grooved surface of the rib (A) up and insert the control cable until it stops.
NOTE: Apply multi-purpose grease to control cable eye before installation.

Removal

Install the socket (A) onto the CVT shift selector assembly.

CAUTION:

Place the socket onto the CVT shift selector assembly, then fasten it in place from above.
Check that the pulling on the socket does not disconnect it.

Removal

Inspection and Adjustment

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT position. Refer to TM-92, "Adjustment".

INSPECTION AFTER ADJUSTMENT

Check the CVT shift selector position after the adjustment. Refer to TM-92, "Inspection".
