Nissan Rogue Service Manual: Cluster lid C

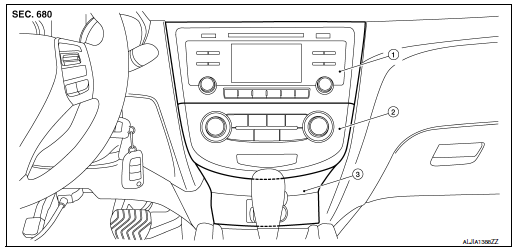

Exploded View

Exploded View

  1. Audio unit (AUDIO WITHOUT BOSE) / AV control unit (AUDIO WITH BOSE) (NAVIGATION WITH BOSE)
  2.  A/C switch assembly (AUTOMATIC AIR CONDITIONING) / front air control (MANUAL AIR CONDITIONING)
  3.  Cluster lid C

Removal and Installation

REMOVAL

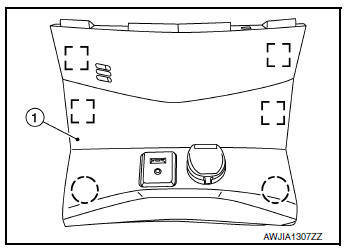

  1.  Release cluster lid C (1) clips and pawls using a suitable tool.

: Metal clip
: Pawl

Removal

  1. Disconnect the in-vehicle sensor hose from the cluster lid C.
  2.  Disconnect the harness connectors from cluster lid C and remove.

INSTALLATION

Installation is in the reverse order of removal.
