Nissan Rogue Service Manual: Brake fluid

Drain and Refill

CAUTION:

DRAINING

  1.  Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or negative battery terminal. Refer to PG-75, "Removal and Installation (Battery)".
  2.  Connect a vinyl tube to bleeder valve.

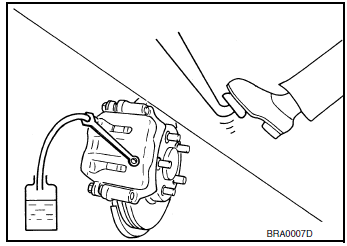

  3.  Depress brake pedal, loosen bleeder valve, and gradually remove brake fluid.

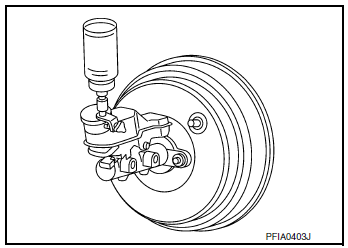

CAUTION: Do not allow master cylinder reservoir tank to empty as this may cause damage to master cylinder internal components.

Drain and Refill

REFILLING

  1. Make sure no foreign material is in the reservoir tank, and refill with new brake fluid.

    CAUTION: Do not reuse drained brake fluid.

  2. Refill the brake system as follows:

Repeat this operation at intervals of two or three seconds until all old brake fluid is discharged. Add new brake fluid frequently.

CAUTION: Do not allow master cylinder reservoir tank to empty as this may cause damage to master cylinder internal components.

  1.  Bleed the air out of the brake hydraulic system. Refer to BR-16, "Bleeding Brake System".

Drain and Refill

Bleeding Brake System

CAUTION:

  1.  Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector or negative battery terminal. Refer to PG-75, "Removal and Installation (Battery)".
  2.  Connect a vinyl tube to front (RH) brake caliper bleeder valve.
  3.  Fully depress brake pedal 4 or 5 times.
  4. With brake pedal depressed, loosen bleeder valve to bleed air in brake line, and then tighten it immediately.
  5. Repeat steps 3 and 4 until all of the air is out of the brake line.
  6. Tighten the bleeder valve to the specified torque. Refer to BR-45, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View" (front disc brake), BR-51, "Exploded View" (rear disc brake).
  7.  Repeat steps 2 through 6, with the reservoir tank filled at least halfway. Bleed the air in the following order: front (RH), front (LH), rear (RH), rear (LH).
Brake pedal
Adjustment BRAKE PEDAL HEIGHT  Remove instrument lower panel LH. Refer to IP-22, "Removal and Installation".  Disconnect the harness connectors from the stop lamp switch ...

Front disc brake
Brake Burnishing CAUTION:  Burnish contact surfaces between brake pads and disc brake rotor according to the following procedure after refinishing the disc brake rotor, replacing brake ...
