Nissan Rogue Service Manual: Brake booster

Nissan Rogue Service Manual / Brakes / Brake System / Removal and installation / Brake booster

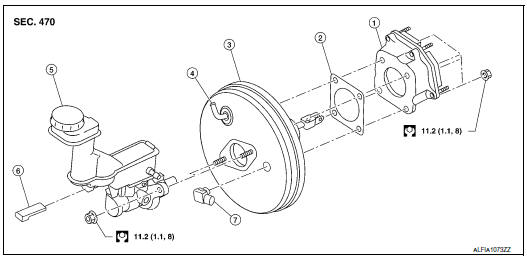

Exploded View

Exploded View

  1. Spacer
  2. Gasket
  3. Brake booster
  4.  Check valve
  5. Reservoir tank
  6. Brake fluid level sensor
  7.  Brake booster pressure sensor

Removal and installation

REMOVAL

  1.  Remove the cowl top. Refer to EXT-25, "Removal and Installation".
  2.  Remove the instrument lower panel LH. Refer to IP-22, "Removal and Installation".
  3.  Remove the knee protector. Refer to IP-14, "Exploded View".

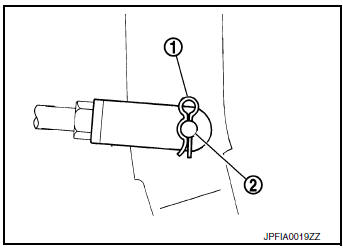

  4.  Remove the snap pin (1) and clevis pin (2) from the brake pedal.

Removal

  1. Disconnect vacuum hose from brake booster. Refer to BR-32, "Exploded View".
  2. Remove master cylinder assembly. Refer to BR-27, "Removal and Installation".
  3.  Disconnect the harness connector from the brake booster pressure sensor.
  4.  Remove the brake booster pressure sensor.
  5.  Remove the nuts on the brake booster and brake pedal.

    CAUTION: Secure the brake booster to avoid damage to components.

  6.  Remove the brake booster.

    CAUTION: Do not deform or bend the brake pipes.

INSTALLATION

  1. Install a new gasket between the brake booster and dash panel.

    CAUTION: Do not reuse the gasket.

  2.  Install the brake booster to the dash panel from the engine room side.

    CAUTION: Do not damage brake booster stud bolt threads during installation.

  3.  Install the nuts to the brake booster and brake pedal. Refer to BR-30, "Exploded View".
  4.  Install the brake booster pressure sensor.
  5.  Connect the harness connector to the brake booster pressure sensor.
  6.  Install master cylinder assembly. Refer to BR-27, "Removal and Installation".
  7.  Connect vacuum hose to brake booster. Refer toBR-32, "Exploded View".
  8.  Install the clevis pin and snap pin to the brake pedal.
  9.  Adjust the brake pedal. Refer to BR-15, "Adjustment".
  10.  Install the knee protector. Refer to IP-14, "Exploded View".
  11.  Install instrument lower panel LH. Refer to IP-22, "Removal and Installation".
  12.  Bleed the brake system. Refer to BR-16, "Bleeding Brake System".
  13.  Inspect the brake booster. Refer to BR-10, "Inspection".
